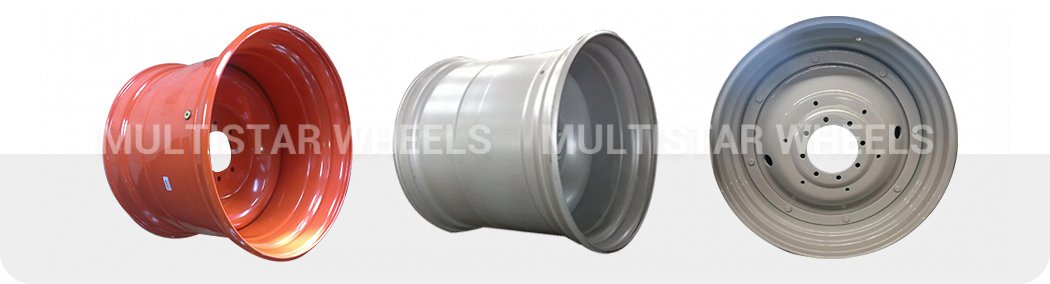

Agricultural Wheels

Share to:

Application

MULTISTAR is a leading supplier of single piece fixed and adjustable wheels suitable for tractors, combines, towed agricultural implements and trailed applications, with a wide range includes products designed for driven and trailed applications.
All MULTISTAR Agricultural wheels are designed and studied using computer simulation (Finite Element Analysis), with field experience then confirming rim capabilities. Main benefits are strength and durability, easier wheel change and tyre fitting, reduced weight and performance under challenging load capacity.

MULTISTAR agricultural wheels have a well-proven protective paint finish as standard. This comprises an electro-coat primer and high quality top coat. Wheels can also be supplied fully galvanized. Besides an outstanding finish, all wheels used for the heavy implement and flotation industry are provided as standard with humps for optimum fitting, safely seated tyres, improved stability and minimum damage in case of deflation.
The product range of MULTISTAR agricultural wheels includes diameters from 12” to 54” and widths from 7” to 36” in standard W, DW and Row Crop rim profiles.
Irrigation wheels are available in diameters from 24” to 38” and widths from 8” to 15”.

Inquire Now

12
15
16
17
18
20
22
24
25
26
28
30
32
34
36
38
42
420
475
480
14.5
15.3
15.5
16.1
16.5
17.5
19.5
20.5
22.5
24.5
26.5
30.5

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	10	M14	93	140	-6	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	85	130	-27	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	60	100	0	-		5	H2	15.7	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	40	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	57	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	102	140	0	-		5	H2	15.7	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	60	100	-70	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	0	-		5	H2	15.7	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-24	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-40	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-60	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	20	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	0	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	67	112	0	-		5	H2	15.7	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	55	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12ES24	60	100	-40	-		5	H2	11.3	NO			72
10.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B12ES24	67	112	0	-		5	H2	11.3	NO			72
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	M12	85	125	-34	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	60	98	-5	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	0	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B14EC80	94	140	0	-		5	H2	15.7	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12ES24	60	100	-28	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B12ES24	67	112	0	-		5	H2	15.7	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12ES24	60	100	-50	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	5	B12EC90	74	114.3	-13	-		5	H2	11.3	NO			96
8.50I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12EC60	66.7	101.6	-38	-		5	H2	11.3	NO			96
7.00I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	M12	85	125	-61	-		5	H2	11.3	NO			108
7.00I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	M12	85	125	-29	-		5	H2	11.3	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	-30	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	-10	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	60	100	-27	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	0	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	67	112	0	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-25	-		5		15.7	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	85	130	-20	-		5		15.7	NO			108
7.00I x 12H2	(x) Fixed wheel	PT Trailer	5	B14ES28	94	140	10	-		5	H2	11.3	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	4	B12ES24	60	100	0	-		5		11.3	NO			108
7.00I x 12H2	(x) Fixed wheel	PT Trailer	5	B12ES24	67	112	30	-		5	H2	11.3	NO			108
7.00I x 12H2	(x) Fixed wheel	PT Trailer	5	B12ES24	67	112	0	-		5	H2	11.3	NO			108
7.00I x 12H2	(x) Fixed wheel	PT Trailer	5	B12ES24	67	112	10	-		5	H2	11.3	NO			108
7.00 x 12	(x) Fixed wheel	Agricultural Machinery	4	B12EC90	85	130	0	-		5		15.7	NO			108
7.00I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12EC60	66.7	101.6	40	-		5	H2	11.3	NO			108
7.00I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12EC60	66.7	101.6	-26	-		5	H2	11.3	NO			108
7.00I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12EC105	60	100	15	-		5	H2	15.7	NO			108
7.00I x 12H2	(x) Fixed wheel	Agricultural Machinery	4	B12DC90	60	100	44	-		5	H2	11.3	NO			108
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	85	130	20	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	0	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	67	112	0	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	25	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	67	112	25	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	66.5	112	40	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	4	B14DS28	57	100	45	-		5		15.7	NO			168
4.25J x 12	(x) Fixed wheel	Agricultural Machinery	5	B12ES24	67	112	0	-		5		15.7	NO			168
3.00B x 12	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	67	112	26	-		5		15.7	NO			216
3.00B x 12	(x) Fixed wheel	Agricultural Machinery	5	B14EC90	94	140	-4	-		5		11.3	NO			216
3.00B x 12	(x) Fixed wheel	Agricultural Machinery	5	A2 = B18ES32	101.8	139.7	-4	-		5		15.7	NO			216
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	M12	93	140	-10	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	M12	110	150	-86	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	10	M12	93	140	-50	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B60	79.5	114.3	-22	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	67	112	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	40	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	-30	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	-40	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	-50	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	4	B16ES28	85	130	-27	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	110	160	40	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	B16EC80	100.5	140	0	-	23x12.50-12 26x12.00-12	5	H2	11.3	YES	Yes	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B14ES24	80	112	0	-		5	H2	11.3	NO valve only	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	B14ES24	80	120	-50	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B14ES24	67	112	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B14ES24	67	112	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B14ES24	67	112	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B14ES24	67	112	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	4	B14ES24	60	98	-30	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B14EC90	96	140	-21	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B12ES28	93	140	-43	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B12EC90	79.5	114.3	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	93	139.7	20	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	93	139.7	20	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	10	B12EC90	96.5	140	-25	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	0			5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	4	B12EC60	60	100	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	4	B12EC60	60	100	40	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	5	B10EC90	79.5	114.3	0	-		5	H2	11.3	YES	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-42	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5	H2	11.3	NO	No	No	36	1584
12x10.50I	Disc	Agricultural Machinery	6	M12	110	150	-	-		-	-	-	NO	No	-	60	2640
12x10.50I	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5	H2	11.3	NO	No	No	36	1584

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
13LB x 15H2	(x) Fixed wheel	Construction Machinery	6	M18	161	205	-40	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	M14	117.4	152.4	-133	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	66	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	35	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-7.6	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-35	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-55	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	10	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-45	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	27	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-60	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Construction Machinery	10	B14ES28	94	140	-5	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Construction Machinery	5	B14ES28	66.5	112	68	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-50	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-37	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-20	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-69	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	0	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	192	225	83.5	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	49	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	-40	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	94	140	57	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	94	140	57	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	15	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	35	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	94	140	77	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	94	140	-65	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	94	140	-65	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14DS28	110	160	28	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14DS28	110	160	38	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B12ES24	90	180	-92	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	8	B12EC90	130.8	165.1	-89	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	8	B12EC90	130.8	165.1	-67	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-105	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-37	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	37	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	37	-		5	H2	15.7	NO			40
13LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-85	-		5	H2	15.7	NO			40
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	8	M18	152.4	203.2	35	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	M16	161	205	60	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	M12	90	120	-62	-		5	H2	9.7	NO			48
10LB x 15H2	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-35	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-25	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	15	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	52	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	25	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Construction Machinery	5	B14ES28	94	140	5	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Construction Machinery	5	B14ES28	94	140	5	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	192	225	-8	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-23	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	100	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	54	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-8	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	-25	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B12ES24	90	180	-62	-		5	H2	9.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.4	152.4	28	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	15.7	NO			48
10LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	-73	-		5	H2	15.7	NO			48
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	23	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	60	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	18	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	-28	-		5	H2	11.3	NO			64
8LB x 15H2	(x) Fixed wheel	Construction Machinery	5	B14ES28	94	140	0	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	57	100	0	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-5	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	20	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14ES28	94	140	40	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14EC60	78	130	21	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	94	140	-28	-		5	H2	11.3	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	-28	-		5	H2	11.3	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	120	170	-13	-		5	H2	15.7	NO			64
8LB x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5	H2	15.7	NO			64
7J x 15	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	67	-		5	H2	11.3	NO			72
7J x 15	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	58	-		5		15.7	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-10	-		5	H2	15.7	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	40	-		5	H2	15.7	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	15	-		5	H2	15.7	NO			72
7J x 15	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	55	-		5	H2	11.3	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5	H2	11.3	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	58	-		5		15.7	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	15	-		5		15.7	NO			72
7J x 15	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	42.5	-		5		15.7	NO			72
7J x 15	(x) Fixed wheel	Construction Machinery	5	B14DS28	66.5	112	30	-		5		15.7	NO			72
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	50	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	-40	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14ES28	94	140	60	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14ES28	94	140	40	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	5	B14ES28	94	140	60	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	PT Trailer	5	B14ES28	94	140	30	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	PT Trailer	5	B12ES24	66.5	112	30	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Agricultural Machinery	8	B12EC90	152.4	203.2	44	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	PT Trailer	5	B12EC60	66.5	112	30	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	120	170	3	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	20	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	-5	-		5	H2	11.3	NO			88
6J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	0	-		5	H2	11.3	NO			88
5½J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	30	-		5	H2	11.3	NO			96
5½J x 15H2	(x) Fixed wheel	PT Trailer	4	B14ES28	85	130	20	-		5	H2	11.3	NO			96
5½J x 15H2	(x) Fixed wheel	PT Trailer	5	B14ES28	94	140	30	-		5	H2	11.3	NO			96
5½J x 15H2	(x) Fixed wheel	PT Trailer	5	B12ES24	66.5	112	30	-		5	H2	11.3	NO			96
5½J x 15H2	(x) Fixed wheel	PT Trailer	5	B12EC60	66.5	112	30	-		5	H2	11.3	NO			96
5½J x 15H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	30	-		5	H2	11.3	NO			96
5J x 15H2	(x) Fixed wheel	Agricultural Machinery	4	B14ES28	85	130	20	-		5	H2	11.3	NO			104
5J x 15H2	(x) Fixed wheel	PT Trailer	5	B12ES24	66.5	112	30	-		5	H2	11.3	NO			104
5J x 15H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	11.3	NO			104
4J x 15	(x) Fixed wheel	Agricultural Machinery	5	A2 = B18ES32	94	140	40	-		5		11.3	NO			-
4J x 15	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		11.3	NO			-
4J x 15	(x) Fixed wheel	Urban Utility Vehicles	5	A2 = B18ES32	72	120	40	-		5		11.3	NO			-
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	10	M12	93	140	-65	-	29/12.50-15 31/10.50-15 33/12.0-15 285/70R15	5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	10	M12	93	140	-80	-		5	H2	15.7	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	15.7	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5	H2	15.7	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-84.2	-		5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-84.2	-		5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	117.6	152.4	28.6	-		5	H2	15.7	YES	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	117.6	152.4	28.6	-		5	H2	15.7	YES	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	117.5	152.4	-15	-		5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-35	-		5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	4	B14EC60	58.5	98	40	-		5	H2	15.7	YES	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.6	203.2	28.6	-		5	H2	15.7	YES	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.6	203.2	28.6	-		5	H2	15.7	YES	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	10	B12EC90	96.5	140	-25	-		5	H2	11.3	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.4	152.4	63.5	-		5	H2	15.7	YES	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	15.7	NO	No	No	16 / 24	1040
10LBx15 H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	15.7	NO	No	No	16 / 24	1040
10LBx15 H2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5	H2	11.3	NO	No	No	16 / 24	1040
15x7JA	(x) Fixed wheel	Construction Machinery	6	M16	190.5	240	109	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	M16	190.5	240	109	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	5	M14	115.5	150	-15	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	M14	115.5	175	-15	-	25/10.5-15 27/10.5-15 275/60R15	5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	9	M12	190	215	-3	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	9	M12	190	215	-3	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	M12	117.4	152.4	-12.7	-		5		15.7	YES	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	M12	117.5	152.4	30.2	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	10	M10	57	100	132.1	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	10	M10	57	100	132.1	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	10	M10	76	100	132.1	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	10	M10	76	100	132.1	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	10	M10	76	100	132.1	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B18ES60	161	205	30	-		5		15.7	YES	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B18ES60	161	205	30	-		5		15.7	YES	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14IC60	150	180	60	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14IC60	150	180	60	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	5	B14IS28	94	140	131	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	101.7	139.7	-10	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Construction Machinery	6	B14EC90	117.6	152.4	50	-		5		15.7	YES	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Construction Machinery	6	B14EC90	117.6	152.4	50	-		5		15.7	YES incl.valve	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Construction Machinery	6	B14EC90	117.6	152.4	50	-		5		15.7	NO valve only	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Construction Machinery	9	B14EC90	200	241.3	-18	-		5		15.7	NO valve only	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	182	240	127	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	182	240	127	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	-10	-		5		15.7	YES	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	-10	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	-10	-		5		15.7	YES	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	-4.5	-		5		15.7	YES	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	-4.5	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	-4.5	-		5		15.7	YES	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	28	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	28	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B14EC60	118	152.4	28	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	0	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.5	152.4	19	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.5	152.4	19	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.5	152.4	30	-		5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B12EC60	140	180	30	-	9.5/65-15 27x8.50-15NHS 27x9.50-15NHS	5		15.7	NO	No	No	20/ 30	1300
15x7JA	(x) Fixed wheel	Construction Machinery	6	B12EC60	140	180	30	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.4	152.4	28.6	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.6	152.4	28.7			5		15.7	YES	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	B10EC60	93	140	10	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	20/ 30	1300
8LBx15	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	20/ 30	1300
15x6LB H2	(x) Fixed wheel	Agricultural Machinery	10	M12	93	140	12	-		5	H2	15.7	NO	No	No	24/ 36	1560
15x6LB H2	(x) Fixed wheel	Construction Machinery	6	B90	161	205	6.9	-		5	H2	15.7	NO	No	No	24/ 36	1560
15x6LB H2	(x) Fixed wheel	Agricultural Machinery	6	B14DS24	80	120	20	-		5	H2	15.7	NO	No	No	24/ 36	1560
15x6LB H2	(x) Fixed wheel	Construction Machinery	6	B12EC90	161	205	6.9	-		5	H2	15.7	NO	No	No	24/ 36	1560
15x6LB H2	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.4	152.4	28.6	-		5	H2	15.7	NO	No	No	24/ 36	1560
15x6LB H2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5	H2	15.7	NO	No	No	24/ 36	1560
8LBx15	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	20/ 30	1300

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
11 x 16	(x) Fixed wheel	Agricultural Machinery	8	M18	152.4	203.2	35	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	M16	135	170	-81.5	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	M16	110	150	-71.5	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-30	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-20	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-50	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-30	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	40	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-20	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	B14EC60	117.7	152.4	-12	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	20	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	5	A2 = B18ES32	80	115	0	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	13	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
11 x 16	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
W8L x 16	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	19.5	-		5		15.7	NO			40
W8L x 16	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		5		15.7	NO			40
W8L x 16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-75	-		5		15.7	NO			40
W8L x 16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-25	-		5		15.7	NO			40
10LB x 16	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	60	-		5		11.3	NO			48
10LB x 16	(x) Fixed wheel	Urban Utility Vehicles	5	B14ES28	94	140	-35	-		5		15.7	NO			48
10LB x 16	(x) Fixed wheel	Urban Utility Vehicles	8	B14EC90	152.4	203.2	-7	-		5		15.7	NO			48
10LB x 16	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	30	-		5		15.7	NO			48
10LB x 16	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	30	-		5		11.3	NO			48
10LB x 16	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	15	-		5		11.3	NO			48
8J x 16H2	(x) Fixed wheel	PT Trailer	5	B14ES28	84	165.1	0	-		5	H2	15.7	NO			64
8J x 16	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5		15.7	NO			64
8J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	0	-		5	H2	11.3	NO			64
8J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	60	-		5	H2	11.3	NO			64
8J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	40	-		5	H2	11.3	NO			64
8J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	-5	-		5	H2	15.7	NO			64
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	35	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	B2 = B18DS32	161	205	45	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	PT Trailer	5	B14ES28	94	140	0	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	PT Trailer	5	B14ES28	94	140	30	-		5	H2	11.3	NO			80
5½J x 16H2	(x) Fixed wheel	PT Trailer	5	B14EC80	115	165.1	33.4	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	PT Trailer	5	B12ES24	66.5	112	30	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	20	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	70	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	0	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	25	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	0	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	-5	-		5	H2	11.3	NO			80
6J x 16H2	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	55	-		5	H2	11.3	NO			80
4.00E x 16	(x) Fixed wheel	Agricultural Machinery	4	M16	94	140	40	-		5		15.7	NO			120
W7 x 16	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			16
W8 x 16	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			16
W8 x 16	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			16
W8 x 16	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			16
5.50F x 16	(x) Fixed wheel	Tractor	6	M16	117.7	152	0	-		5		15.7	NO			24
5,50F x 16	(x) Fixed wheel	Tractor	6	M12	115	152	5	-		5		15.7	NO			24
5.50F x 16	(x) Fixed wheel	Tractor	6	M12	115	152	0	-		5		15.7	NO			24
4.00E x 16	(x) Fixed wheel	Tractor	6	M16	117.7	152	10	-		-		15.7	NO			28
4.00E x 16	(x) Fixed wheel	Tractor	6	M12	115	152	21	-		-		15.7	NO			28
4.00E x 16	(x) Fixed wheel	Tractor	6	M12	115	152	28	-		-		15.7	NO			28
W8 x 16	(x) Fixed wheel	Tractor	5	M14	111	150	-8	-		-		15.7	NO			40
W8 x 16	Adjustible	Tractor	6	M12	117.7	152.4	-	-		-		15.7	NO			40
16x12	(x) Fixed wheel	Construction Machinery	12	M14	295.3	330	-29	-	22x12x16	MOLD ON			NO	No	No	12/ 18	780
16x12	(x) Fixed wheel	Construction Machinery	12	M14	295.3	330	-29	-	22x12x16	MOLD ON			NO	No	No	12/ 18	780
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	15	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	15	-	16 /24	5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	15	-	12.5/70-16	5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	15	-	12.5/70-16	5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	15	-	12.5/70-16	5		15.7	NO	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-52	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-52	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M18	161.8	205	45	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M18	161.8	205	45	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-10	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-10	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-10	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-10	-		5		15.7	NO	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	B14EC60	140	180	-45	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	1040
10LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	1040
9x16	(x) Fixed wheel	Construction Machinery	9	M16	200.5	241.3	-44.5	-		MOLD ON			NO	No	No	16/ 24	1040
9x16	(x) Fixed wheel	Construction Machinery	9	M16	200.5	241.3	-44.5	-		MOLD ON			NO	No	No	16/ 24	1040
9x16	(x) Fixed wheel	Construction Machinery	9	M14	230	262	-14.5	-	22x9x16	MOLD ON			NO	No	No	16/ 24	1040
9x16	(x) Fixed wheel	Construction Machinery	9	M14	230	262	-14.5	-	22x9x16	MOLD ON			NO	No	No	16/ 24	1040
8LBx16	(x) Fixed wheel	Construction Machinery	6	M16	190.5	240	-68	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	M16	190.5	240	125	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Agricultural Machinery	6	M16	135	170	-12	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	8	M14	153.2	203.2	-40	-		5		15.7	YES incl.valve	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	10	M10	57	100	148	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	10	M10	57	100	148	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	B14EC60	182	240	135	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-56.6	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.4	152.4	28.6	-		5		15.7	NO	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20 / 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20 / 30	1300
7x16	(x) Fixed wheel	Construction Machinery	9	M16	200.5	241.3	-32	-		MOLD ON			NO	No	No	20/ 30	1300
7x16	(x) Fixed wheel	Construction Machinery	9	M16	200.5	241.3	-32	-		MOLD ON			NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	M16	190.5	240	-68	-		5		15.7	NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	M16	190.5	240	125	-		5		15.7	NO	No	No	20/ 30	1300
7x16	(x) Fixed wheel	Construction Machinery	9	M14	230.5	262	-25	-	22x7x16	MOLD ON			NO	No	No	20/ 30	1300
7x16	(x) Fixed wheel	Construction Machinery	9	M14	230.5	262	-25	-	22x7x16	MOLD ON			NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	8	M14	153.2	203.2	-40	-		5		15.7	YES incl.valve	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	8	M14	153.2	203.2	-40	-		5		15.7	YES incl.valve	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	10	M10	57	100	148	-		5		15.7	NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	10	M10	57	100	148	-	10.5/80-16 11.00-16SL	5		15.7	NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	B18ES32	161	205	0			5		15.7	YES incl.valve	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	B14EC60	182	240	135	-		5		15.7	NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-56.6	-		5		15.7	NO	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20/ 30	1300
8LBx16	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	20/ 30	1300
16x6LB	(x) Fixed wheel	Construction Machinery	5	M14	93.8	140	28	-		5		15.7	NO	No	No	24 / 36	1560
16x6LB	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.4	152.4	28.6	-		5		15.7	NO	No	No	24 / 36	1560
16x6LB	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	24 / 36	1560
16x6LB	(x) Fixed wheel	Construction Machinery	5	M14	93.8	140	28	-	210/80R16	5		15.7	NO	No	No	24/ 36	1560
16x6LB	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	24/ 36	1560
16x14	(x) Fixed wheel	Construction Machinery	6	M18	160.9	205	73	-		MOLD ON			NO	No	No	8/ 12/ 18	650
16x14	(x) Fixed wheel	Construction Machinery	6	M18	160.9	205	73	-		MOLD ON			NO	No	No	8/ 12/ 18	650
10LBx16	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	16 /24	1040
8LBx16	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	20 / 30	1300

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	-20	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-70	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	B2 = B18DS32	221	275	-50	-		5		15.7				20
16.00 x 17H2	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	60	-		5	H2	15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-35	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	176	225	-25	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	176	225	-10	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	176	225	0	-		5	H2	15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-100	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-92	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-80	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-70	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-60	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-35	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-35	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-10	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-10	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			20
16.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-70	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-35	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-35	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5	H2	15.7	NO			20
16.00 x 17H2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5	H2	15.7	NO			20
13.00 x 17	(x) Fixed wheel	Construction Machinery	4	BUNF34ES44.8	221	275	-100	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-20	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	85	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-54	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	91	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-49	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	66	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	45	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	20	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	40	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-54	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	192	225	37.5	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	117.5	152.4	0	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-15	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	110	160	-55	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	45	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	20	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	35	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-45	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-85	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-140	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	100	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-117.5	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-85	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	23	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-40	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-45	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		5		15.7	NO			25
13.00 x 17	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
17.5 x 6.00	(x) Fixed wheel	Agricultural Machinery	8	M14	120.9	165.1	12.7	-		15		9.7	NO			40
17.5 x 6.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC60	120.9	165.1	12.7	-		15		9.7	NO			40
17.5 x 6.00	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	0	-		15		9.7	NO			40
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-15	-		5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-15	-		5		15.7	NO	Yes	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-15	-	15.0/55-17 15.0/55-17 380/50-17	5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.7	152.4	-25	-		5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES incl.valve	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-30	-		5		15.7	YES	Yes	No	12/ 15	648
17x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-30	-		5		15.7	YES	Yes	No	12/ 15	648
17x13.00	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	12/ 15	648
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	M14	152.4	203.2	-63.5	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	M14	152.4	203.2	-38	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-70	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-70	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-35	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-35	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-25	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES incl.valve	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES incl.valve	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-	19.0/45-17 500/40-17 500/50-17 505/50-17	5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	8 / 10 / 12/15	540
17x16.00	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	8 / 10 / 12/15	540

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
11 x 18	(x) Fixed wheel	Construction Machinery	8	M22	221	275	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	M20	221	275	25	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-46	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	4	BUNF34ES44.8	221	275	2	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	BUNF34ES44.8	142	205	44	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	BUNF34ES44.8	142	205	55	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	BUNF34ES44.8	142	205	5	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-7	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	32	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-20	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	35	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	65	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-10	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	30	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-25	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-15	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	22	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-80	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	22	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-35	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	40	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	25	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	40	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	14	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	65	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	67	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	-35	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	32	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	35	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	10	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-20	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	67	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	60	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-25	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-35	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	75	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	75	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	60	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-20	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-63	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	55	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-59	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	50	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			24
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			24
13 x 18	(x) Fixed wheel	Construction Machinery	8	M18	152.4	203.2	-55	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	4	BUNF34ES44.8	221	275	-15	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	18	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	15	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	90	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	65	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	70	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	40	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	30	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-35	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	0	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	40	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	15	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-40	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	10	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
13 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			25
9 x 18	(x) Fixed wheel	Construction Machinery	8	M22	221	275	15	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	-5	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-37	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	15	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	50	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	70	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	M16	152.4	203.2	25	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	29	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	18	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	4	BUNF34ES44.8	221	275	-5	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	4	BUNF34ES44.8	221	275	-73	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	40	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	22	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	32	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-40	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-69	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	20	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	60	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	60	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	37	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	38	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	25	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-38	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-20	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			28
9 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-20	-		5		15.7	NO			28
5.50F x 18	(x) Fixed wheel	Tractor	6	M16	117.7	152	10	-		5		15.7	NO			24
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-20	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-20	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-20	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-20	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	133	180	-20	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	170	220	-37	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M20	170	220	-37	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	75	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M18	161.8	205	10	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M18	161.8	205	10	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-50	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-50	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	M18	141	180	-50	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	0	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	0	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	0	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12	528
13 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12	528
11 x 18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-21.5	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-21.5	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	5	B18ES44.8	291	335	32	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	5	B18ES44.4	291	335	32	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	B18ES36	221	275	0	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	YES incl.valve	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	172	204	-16.2	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	172	204	-16.2	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12/ 16	616
11 x 18	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	12/ 16	616
9x18	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	10	M18	281	322	-6	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	10	M18	281	322	-6	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-6	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-6	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-20	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-20	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	5	B19ES44.4	290	335	29	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	5	B19ES44.4	290	335	29	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	5	B19DC90	150.5	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	5	B19DC90	150.5	205	0	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	5	B18ES44.4	291	335	18	-	10.5/80-18 12.0-18 12.5/80-18 275/80R18 325/70R18	5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	5	B18ES44.4	291	335	18	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-20	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-20	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-20	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	-63	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	-63	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	-63	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	-63	-		5		15.7	NO	No	No	16 /24	792
9x18	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	16 /24	792
9x18	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	16 /24	792

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
9 x 20	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	-60	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-8	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	45	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	90	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	58	-		5		15.7	NO			28
9 x 20	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	58	-		5		15.7	NO			28
11 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	55	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	30	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-10	-		5		15.7	NO			20
11 x 20H2	(x) Fixed wheel	Construction Machinery	8	M22	221	275	80	-		5	H2	15.7	NO			20
11 x 20H2	(x) Fixed wheel	Construction Machinery	8	M22	221	275	80	-		5	H2	9.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	M16	135	170	-63.5	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	41	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	1	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-12	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	6	BUNF34ES44.8	142	205	50	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	BUNF34ES44.8	142	205	5	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	65	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	20	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	70	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-30	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	90	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-10	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-40	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	30	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	75	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-35	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	67	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	50	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-10	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	B2 = B18DS32	221	275	-25	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-30	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-10	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	50	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	35	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	58	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	22	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	64	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	60	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	75	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-35	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			20
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			20
11 x 20H2	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	75	-		5	H2	9.7	NO			20
13 x 20	(x) Fixed wheel	Construction Machinery	10	M22	281	335	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	30	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	70	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-25	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	8	M20	221	275	12.5	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	21	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	50	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	40	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	67	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	35	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	70	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	70	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	80	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	55	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	30	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-85	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	8	B2 = B18DS32	221	275	-50	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	-50	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	30	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	25	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	275	-10	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-25	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-40	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	20	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	10	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	70	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-85	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-7.5	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	275	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	11.5	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-45	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-75	-		5		15.7	NO			16
13 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	5	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Construction Machinery	6	M16	135	170	-110	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	M16	152.4	203.2	-124	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	65	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	50	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-100	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	70	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	B2 = B18DS32	221	275	-40	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-40	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-40	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-51	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	40	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-10	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	50	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	40	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			16
14 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	10	M18	221	285,75 (11.25")	-98	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	20	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-50	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-20	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	0	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-55	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-30	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-100	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-50	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			16
16 x 20	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			16
W9 x 20	Adjustible	Tractor	6	M18	80.5	120	-	-		-		15.7	NO			14
W9 x 20	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			14
W9 x 20	Adjustible	Tractor	6	M14	117.7	152.4	-	-		-		15.7	NO			40
W10 x 20	Adjustible	Tractor	6	M18	80.5	120	-	-		-		15.7	NO			14
W10 x 20	Adjustible	Tractor	8	M16	153	203.2	-	-		-		15.7	NO			14
W10 x 20	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			14
W11 x 20	Adjustible	Tractor	8	M16	150	203.2	-	-		-		15.7	NO			12
W11 x 20	Adjustible	Tractor	6	M18	285.25	325	-	-		-		15.7	NO			56
11 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	0	-		5		15.7	NO	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-50	-		5		15.7	NO	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-45	-		5		15.7	YES	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Agricultural Machinery	6	M16	161	205	-110	-		5		15.7	NO	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	16	M14	280.5	305	-36.5			5		15.7	NO	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	B18ES36	222	275	-7	-		5		15.7	YES	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-17	-		5		15.7	NO	No	No	12 / 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-45	-		5		15.7	YES	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-5	-		5		15.7	NO	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	9	B14EC90	201.6	241.3	-5	-		5		15.7	NO	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	9	B14EC90	201.6	241.3	-25.4	-		5		15.7	NO	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	9	B14EC90	201.6	241.3	-25.4	-		5		15.7	NO valve only	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	9	B14EC90	201.6	241.3	-25.4	-		5		15.7	NO valve only	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	9	B14EC90	201.6	241.3	-25.4	-		5		15.7	NO valve only	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222	275	-7	-		5		15.7	YES	No	No	12/ 16	560
11 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-17	-	365/80R20	5		15.7	NO	No	No	12/ 16	560
13 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	31	-		5		15.7	NO	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	M22	221	275	31	-		5		15.7	NO	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	M20	221	275	-62.5	-		5		15.7	YES incl.valve	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.8	275	25	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.8	275	25	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-75	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-75	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-75	-		5		15.7	YES incl.valve	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-75	-		5		15.7	YES incl.valve	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-75	-		5		15.7	YES incl.valve	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	325	3.5	-	16/70-20 405/70R20 405/75R20	5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	325	3.5	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	325	3.5	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	325	3.5	-		5		15.7	YES	No	No	12	480
13 x 20	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	30	-		5		15.7	YES incl.valve	No	No	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	8	M22	140	192	60	-		5		15.7	YES	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	8	M22	140	192	60	-		5		15.7	YES	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	8	M20	222	275	30	-		5		15.7	YES	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	8	M20	222	275	30	-		5		15.7	NO	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	10	M18	133	180	-30	-		5		15.7	YES incl.valve	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	10	M18	133	180	-30	-		5		15.7	YES	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	10	M18	133	180	-30	-		5		15.7	NO	No	Yes	12	480
20xW14L	(x) Fixed wheel	Agricultural Machinery	6	M16	161	205	-57	-		5		15.7	NO	No	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	16	M12	320.1	355	-32	-		5		15.7	YES	Yes	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	16	M12	320.1	355	-32	-		5		15.7	YES	Yes	Yes	12	480
20xW14L	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	12	480

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Offset twin wheels

Tire sizes

Tyre angle

Hump

Valve Hole

Valve protection

Flange Reinforced

Knirling

Wheel qty per pallet

Wheels in 40HQ Container

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

22x12

(x) Fixed wheel

Construction Machinery

M14

320

355

MOLD ON

9/ 12

273

22x12

(x) Fixed wheel

Construction Machinery

M14

320

355

MOLD ON

9/ 12

273

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
24 x DW14L	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-2	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	20	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	20	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	60			5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	50	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-10	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	64	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	70	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Tractor	10	B3 = B22DS36	281	335	45	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	10	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Tractor	10	B3 = B22DS36	281	335	10	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	0	-		5		15.7	NO			8
24 x DW15L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	20	-		5		15.7	NO			8
24 x DW15L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	5	-		5		15.7	NO			8
24 x DW15L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	20	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	15	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Tractor	10	B3 = B22DS36	281	335	25	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	45	-		5		15.7	NO			8
24 x DW14L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	60	-		5		15.7	NO			8
24 x DW15L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	40	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-50			5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	30	-		5		15.7	NO			8
24 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	70	-		5		15.7	NO			8
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	90	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-20	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	30	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	67	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	102	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	45	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Tractor	8	M20	221	275	12,5	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Tractor	5	BUNF34ES44.8	291	335	-60	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-40	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-35	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	70	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	35	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	50	-		5		15.7	NO			10
24 x DW12L	(x) Fixed wheel	Tractor	8	B2 = B18DS32	221	275	-30	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	-30	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	B2 = B18DS32	221	275	0	-		5		15.7	NO			10
24 x DW12L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	176	225	0	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-40	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-15	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	29	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	10	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-30	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	20	-		5		15.7	NO			10
24 x DW13L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			10
W10 x 24	Adjustible	Tractor	6	M18	285.25	325	-	-		-		15.7	NO			9
W10 x 24	Adjustible	Tractor	8	M18	221	275	-	-		-		15.7	NO			9
W12 x 24	Adjustible	Tractor	6	M16	285.25	325	-	-		-		15.7	NO			9
W13 x 24	Adjustible	Tractor	6	M16	285.25	325	-	-		-		15.7	NO			9
W10 x 24	Adjustible	Tractor	6	M14	117.7	152.4	-	-		-		15.7	NO			9
W12 x 24	Adjustible	Tractor	8	M18	221	275	-	-		-		15.7	NO			12
W13 x 24	Adjustible	Tractor	8	M18	110	152	-	-		-		15.7	NO			12
W13 x 24	Adjustible	Tractor	8	M18	110.5	152.4	-	-		-		15.7	NO			12
W12 x 24	Adjustible	Tractor	8	M16	150.1	203.2	-	-		-		15.7	NO			12
W12 x 24	Adjustible	Tractor	8	M16	150.1	203.2	-	-		-		15.7	NO			12
W12 x 24	Adjustible	Tractor	8	M16	150.1	203.2	-	-		-		15.7	NO			12
W12 x 24	Adjustible	Tractor	8	M14	150.1	200	-	-		-		15.7	NO			12
W12 x 24	Adjustible	Tractor	8	M14	290.5	330	-	-		-		15.7	NO			12
W12 x 24	Adjustible	Tractor	8	M14	290.5	330	-	-		-		15.7	NO			12
W10 x 24	Adjustible	Tractor	6	M18	80	120	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	8	M18	221	275	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	8	M16	221	275	-	-		-		15.7	NO			14
W8 x 24	Adjustible	Tractor	8	M16	221	275	-	-		-		15.7	NO			14
W9 x 24	Adjustible	Tractor	8	M16	150.1	203.2	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	8	M14	150.1	200	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	8	M14	290.5	330	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	8	M14	290.5	330	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	6	M14	250.5	285	-	-		-		15.7	NO			14
W10 x 24	Adjustible	Tractor	8	M14	153	203.2	-	-		-		15.7	NO			14
24xW18L	(x) Fixed wheel	Construction Machinery	10	M20	281	335	-110.5	-		5		15.7	YES incl.valve	No	Yes	6	204
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	31	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	10	M20	281	335	-10	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	10	M20	281	335	-10	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	7	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	7	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	7	-	16.9R24 445/70R24	5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	10	M20	281	335	-10	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	31	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	31	-		5		15.7	YES	No	Yes	9	306
24xDW14L	(x) Fixed wheel	Tractor	8	M20	221	275	7			5		15.7	YES	No	Yes	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	B18EC90	221	275	19	-		5		15.7	NO	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	B18EC90	221	275	19	-		5		15.7	NO	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.8	275	35	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.8	275	35	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.5	275	-40	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.5	275	-40	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.8	275	-40	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221.8	275	-40	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-50	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-50	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	275	0	-		5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	275	0	-		5		15.7	NO	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	275	0	-	14.9/80-24 15.5/80-24 380/70R24 450/70R24	5		15.7	YES	No	No	9	306
13 x 24	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	275	0	-		5		15.7	NO	No	No	9	306
13 x 24	(x) Fixed wheel	Tractor	8	A2 = B18ES32	227	275	0	-		5		15.7	YES	No	No	9	306
9.00x24	(x) Fixed wheel	Construction Machinery	10	M22	281	335	14.3	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M22	281	335	14.3	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M22	229	285.75	67.4	-		5		20.5	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M22	229	285.75	67.4	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M20	228.8	285.75	16	-		5		15.7	YES	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M20	228.8	285.75	16	-		5		15.7	YES	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M20	228.8	285.75	-23.8	-		5		15.7	YES	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	M20	228.8	285.75	-23.8	-		5		15.7	YES	No	No	12	384
W10 x 24	(x) Fixed wheel	Tractor	8	M20	221	275	-25.4	-	11.2R24 320/70R24	5		15.7	NO	No	No	12	408
24x10	(x) Fixed wheel	Construction Machinery	10	M18	281	335	8	-		5		15.7	NO	No	No	12	408
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-13.2	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-13.2	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-13.2	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-13.2	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-23.8	-	13.00-24	5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-23.8	-	13.00-24	5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	B22ES44.4	282.5	335	-23.8	-		5		15.7	NO	No	No	12	384
W10 x 24	(x) Fixed wheel	Tractor	8	B22ES44	221	285	0	-		5		15.7	NO	No	No	12	408
W10 x 24	(x) Fixed wheel	Tractor	8	B19ES44	220.3	275	20	-		5		15.7	NO	No	No	12	408
W10 x 24	(x) Fixed wheel	Tractor	8	B18ES36	222	275	5	-		5		15.7	YES	No	No	12	408
9.00x24	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-4.8	-		5		15.7	YES	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-4.8	-		5		15.7	YES	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222.8	275	49.3	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222.8	275	49.3	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222.8	275	49.3	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222.8	275	49.3	-		5		15.7	NO	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	15	-		5		15.7	YES	No	No	12	384
9.00x24	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-32	-		5		15.7	YES	No	No	12	384
W10 x 24	(x) Fixed wheel	Tractor	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	12	408
W10 x 24	(x) Fixed wheel	Tractor	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	12	408
W10 x 24	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	12	408
W10 x 24	Disc	Agricultural Machinery	-	-	100	-	-	-		-		-	NO	No	-	12	408
W12 x 24	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	9 /12	357
W8x24	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	35	-		5		15.7	NO	No	No	12/ 15	507
W8x24	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	35	-		5		15.7	NO	No	No	12/ 15	507
24xDW15L	(x) Fixed wheel	Tractor	8	M20	221	275	76.5	-		5		15.7	YES	No	Yes	6 / 9	255
24xDW15L	(x) Fixed wheel	Tractor	8	M20	221	275	76.5	-	500/70R24 IND	5		15.7	YES	No	Yes	6 / 9	255
24xDW15L	(x) Fixed wheel	Tractor	8	M20	221	275	76.5	-		5		15.7	YES	No	Yes	6 / 9	255
24xDW15L	(x) Fixed wheel	Tractor	8	M20	221	275	76.5	-		5		15.7	YES	No	Yes	6 / 9	255
24xDW15L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	227	275	0	-		5		15.7	YES	No	Yes	6 / 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	8	M22	143	250	-15	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	12	M22	156.5	210	-19	-		5		15.7	NO	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Construction Machinery	10	M22	281	335	-25	-		5		15.7	YES incl.valve	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	10	M22	281	335	32.5	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	12	M22	156.5	210	-19	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	12	M22	156.5	210	-19	-		5		15.7	NO	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	8	M22	143	200	35	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	10	M22	143	200	35	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	12	M22	156.5	210	-19	-	16.9R24 17.5LR24	5		15.7	YES	No	Yes	6/ 9	255
24xDW16L	(x) Fixed wheel	Construction Machinery	10	M20	281	335	32.5	-	500/70-24	5		15.7	YES	No	Yes	6/ 9	255
24xDW16L	(x) Fixed wheel	Construction Machinery	10	M20	281	335	-110.5	-		5		15.7	YES incl.valve	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	10	M20	280.2	335	38.1	-		5		15.7	NO	No	Yes	6/ 9	255
24xW15L	(x) Fixed wheel	Tractor	5	B18ES44.8	290	335	36	-		5		15.7	YES	No	Yes	6/ 9	255
24xW15L	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	6/ 9	255
24xDW16L	Blank Rim	Construction Machinery	-	-	-	-	-			5		15.7	-	No	Yes	6/ 9	255
W12 x 24	(x) Fixed wheel	Tractor	10	M20	281	335	11.8	-		5		15.7	NO	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	6	M20	161	205	-17	-		5		15.7	NO	No	No	9 /12	357
24xW12	(x) Fixed wheel	Tractor	10	M18	280.43	335	19.7	-		5		15.7	NO	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	6	M16	161	205	-92	-		5		15.7	NO	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	JSR18	221	275	-19	-		5		15.7	YES	No	Yes	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	JSR18	221	275	-19	-		5		15.7	YES	No	Yes	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	6	B2 = B18DS32	161	205	-20	-		5		15.7	YES	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	6	B2 = B18DS32	161	205	-20	-		5		15.7	YES incl.valve	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	A3 = B22ES36	221	275	50	-		5		15.7	YES incl.valve	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	A3 = B22ES36	221	275	-14	-	14.9-24 13.6R24 380/70R24	5		15.7	NO	No	Yes	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	NO	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	A2 = B18ES32	222	275	0	-		5		15.7	YES	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	8	A2 = B18ES32	222	275	0	-		5		15.7	YES	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	9 /12	357
W12 x 24	(x) Fixed wheel	Tractor	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	9 /12	357
24x10	(x) Fixed wheel	Construction Machinery	10	M18	281	335	8	-		5		15.7	NO	No	No	9/ 12	408
W10 x 24	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-	14.00-24	5		15.7	NO	No	No	9/ 12	408
24xDW16L	(x) Fixed wheel	Construction Machinery	10	M20	281	335	32.5	-		5		15.7	YES	No	Yes	6/ 9	255

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	5	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	25	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	50	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-15	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-30	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-40	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	35	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-30	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	85	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	10	-		5		15.7	NO			8
14.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	25	-		5		15.7	NO			8
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	M22	221	275	10	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	M22	221	275	25	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	M22	221	275	45	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-90	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	-20	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	35	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-40	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	15	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	50	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	36	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	0	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-30	-		5		15.7	NO			10
12.00/1.3 x 25	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			10
25-19.50/2.5 5P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	3	123
25-19.50/2.5 5P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	3	135
25-25.00/3.5 5P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	3	96
25-22.00/3.0 5P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	3	108
25-17.00/2.0 5P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	6	120
25-14.00/1.5 3P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	6/ 9	285
25-14.00/1.5 3P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		without	NO	No	No	6/ 9	285
25-14.00/1.5 3P	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		20.5	NO	No	Yes	6/ 9	285
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	B22ES36	281	335	25			5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	B22ES36	281	335	0			5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	B22ES36	281	335	20			5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	B22ES36	281	335	-10			5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	B19ES36	281	335	40	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	B19ES36	281	335	40	-		5		15.7	YES incl.valve	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	37	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	37	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	40	-	17.5-25	5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	40	-		5		15.7	YES incl.valve	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	25	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	25	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	25	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	12	A3 = B22ES36	371	425	-20	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	12	A3 = B22ES36	371	425	-20	-		5		15.7	YES	No	No	6/ 9	240
25x14.00/1.5	(x) Fixed wheel	Construction Machinery	12	A3 = B22ES36	371	425	-20	-		5		15.7	YES	No	No	6/ 9	240
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	13	M22	170.5	230	-30	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	13	M22	170.5	230	-30	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M22	229	285.75	-14.8	-		5		20.5	NO	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M22	281	335	-5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M22	229	285.75	-14.8	-		5		15.7	NO	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	12	M22	191	245	-87.5			5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery		M22	191	245	-87.5			5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery		M22	191	245	-87.5			5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M20	266.9	317.5	25	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M20	266.9	317.5	25	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M20	281	335	99.8	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M20	281	335	99.8	-		5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M20	228.8	285.75	-75	-	17.5-25	5		15.7	YES	No	No	6/ 9	285
25x13.00/1.4	(x) Fixed wheel	Construction Machinery	10	M20	228.8	285.75	-75	-		5		15.7	YES	No	No	6/ 9	285
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	10	M22	281	335	-10	-		5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	10	M22	281	335	-10	-		5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-24			5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	10	M22	281	335	10			5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	10	M22	281	335	0			5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	8	M20	221	275	31	-		5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	8	M20	221	275	31	-		5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	8	M20	221	275	31	-	15.5-25	5		15.7	YES	No	No	9	288
25x12.00/1.3	(x) Fixed wheel	Construction Machinery	8	M20	221	275	31	-		5		15.7	YES	No	No	9	288

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
26 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-4	-		5		15.7	NO			8
26 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	+60	-		5	no	15.7	NO			8
26 x DW16L	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	88.5	-		5		15.7	NO			8
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M22	281	335	-90	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M22	281	335	-30	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	M22	371	425	91.8	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	M22	371	425	91.8	-		5		15.7	NO	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	8	M22	221	275	-61	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	280.2	335	87	-		5		15.7	YES incl.valve	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	280.2	335	87	-		5		15.7	YES incl.valve	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	20	M20	350	400	-7.5	-		5		15.7	YES	Yes	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	20	M20	350	400	-7.5	-		5		15.7	YES	Yes	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	20	M20	350	400	-7.5	-		5		15.7	YES	Yes	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	280.2	335	60	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	280.2	335	60	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	281.2	335	25.5	-		5		2-φ15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	281.2	335	25.5	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	281.2	335	94.5	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	281.2	335	94.5	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M20	281.2	335	-100	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	16	M18	361	400	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	16	M18	361	400	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	16	M18	350.75	400	-98.3	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M18	221	285.75	0	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M18	221	285.75	0	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M18	281	335	72	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	16	M18	350.75	400	-98.3	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M18	281	335	72	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	8	M18	221.8	275	52	-		5		15.7	NO	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	10	M18	223.2	285.75	0	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	M18	221	285.75	0	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	M16	368.8	424	42	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	M16	368.8	424	42	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	100	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	100	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	56	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	56	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	B22ES44	353	404	113	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	B22ES44	353	404	113	-		5		15.7	NO valve only	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	B22ES44	353	404	113	-		5		15.7	YES incl.valve	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	B22ES44	353	404	113	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B19ES44.8	290	335	80	-		5		15.7	YES	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B19ES44.8	290	335	80	-		5		15.7	YES	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B19ES44.8	290	335	80	-		5		15.7	YES	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B19ES44.8	290	335	80	-		5		15.7	YES	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	8	B19ES44	140	203.2	75	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	8	B19ES44	140	203.2	75	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B18ES44.4	290	335	80	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	B18ES44.4	290	335	80	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	155	203.2	18	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	155	203.2	18	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	75	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	75	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES incl.valve	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES incl.valve	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281.2	335	50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	YES	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	80	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	YES incl.valve	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	80	-		5		15.7	NO	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	YES	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	YES incl.valve	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282	335	80	-		5		15.7	YES incl.valve	No	No	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-30	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-90	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-90	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	A3 = B22ES36	438	480	58.5	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	12	A3 = B22ES36	438	480	58.5	-		5		15.7	NO valve only	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	75	-		5		15.7	NO	No	Yes	6	192
26xDW20A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	75	-		5		15.7	NO	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-50	-		5		15.7	YES	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-50	-		5		15.7	NO	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	YES incl.valve	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	YES	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	-50	-		5		15.7	NO	No	Yes	6	192
26xDW20B	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	-50	-		5		15.7	YES	No	Yes	6	192
26xDW20A	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	6	192
26xDW20A	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	6	192
26xDW25A	(x) Fixed wheel	Construction Machinery	16	M22	370.2	425	0	-		5		15.7	YES	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	16	M22	370.2	425	0	-		5		15.7	YES	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	M22	280.5	335	0	-		5		15.7	NO	Yes	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	M22	280.5	335	0	-		5		15.7	NO	Yes	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	24	M20	410	455	-8	-		5		15.7	YES	Yes	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	24	M20	410	455	-8	-		5		15.7	YES	Yes	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	20	M20	350.3	400	-8	-		5		15.7	YES	Yes	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	M18	221.1	285.75	0	-		5		15.7	NO	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	M18	221	285.75	0	-		5		15.7	NO	Yes	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	M18	221.3	285.75	0	-		5		15.7	NO	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-25	-		5		15.7	NO	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-25	-		5		15.7	YES	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-100	-		5		15.7	NO	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-100	-		5		15.7	YES	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	12	A3 = B22ES36	371	425	-75			5		15.7	YES	No	Yes	3 / 6	144
26xDW25A	(x) Fixed wheel	Tractor	12	A3 = B22ES36	371	425	-75			5		15.7	YES	No	Yes	3 / 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	M22	281.2	335	0	-		5		15.7	NO	No	No	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	M22	281	335	0			5		15.7	NO	No	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Construction Machinery	16	M22	370.2	425	-45			5		15.7	YES	No	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	24	M20	410	455	-8	-		5		15.7	YES	Yes	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	24	M20	410	455	-8	-		5		15.7	YES	Yes	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	20	M20	350.3	400	-8	-		5		15.7	YES	Yes	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	20	M20	350	400	-8	-		5		15.7	YES	Yes	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Construction Machinery	16	M20	350.75	400	-27.8	-		5		15.7	NO	No	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	M18	221.1	285.75	0	-		5		15.7	NO	No	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	M18	221	285.75	0	-		5		15.7	NO	Yes	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	M18	221	285.75	0	-		5		15.7	NO	Yes	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	M18	221	285.75	0	-		5		15.7	NO valve only	No	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	0	-	28LR26 750/50R26	5		15.7	NO	No	Yes	3/ 6	144
26xDW25A	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	-50	-		5		15.7	NO	No	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-90	-		5		15.7	YES	No	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-50	-		5		15.7	NO	No	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-50	-		5		15.7	YES	No	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	3/ 6	144
26xDW25B	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	YES	No	Yes	3/ 6	144
26xDW16A	(x) Fixed wheel	Construction Machinery	10	M20	281	335	-42.5	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Construction Machinery	10	M20	281	335	-42.5	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M20	281	335	5	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M20	281	335	-110.5	-		5		15.7	YES incl.valve	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M20	281	335	-110.5	-		5		15.7	YES incl.valve	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M18	224	285.75	76.2	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M18	224	285.75	-63.5	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M18	224	285.75	-63.5	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M18	224	285.75	0	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M18	224	285.75	0	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	M18	221	285.75	0	-	480/70R26	5		15.7	NO	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	8	B14DC90	152.5	203.2	-38	-		5		15.7	YES	No	Yes	6/ 9	240
26xDW16A	(x) Fixed wheel	Tractor	10	A3 = B22ES36	282	335	41	-		5		15.7	NO	No	Yes	6/ 9	240
26xDW16A	Blank Rim	Construction Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	6/ 9	240
26xDW16A	Disc	Construction Machinery	-	-	214	-	-	-		-		-	NO	No	-	6/ 9	240

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
28 x DW15L	(x) Fixed wheel	Construction Machinery	8	M22	221	275	60	-		5		15.7	NO			4
28 x DW15L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	5	-		5		15.7	NO			4
28 x DW15L	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	19	-		5		15.7	NO			4
28 x DW15L	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-5	-		5		15.7	NO			4
W16L x 28	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-130	-		5		15.7	NO			4
W12L x 28	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-40	-		5		15.7	NO			5
W12L x 28	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	30	-		5		15.7	NO			5
W16L x 28	Adjustible	Tractor	10	M20	281	335	-	-		-		15.7	NO			9
W12 x 28	Adjustible	Tractor	6	M18	285.25	325	-	-		-		15.7	NO			9
W12 x 28	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			9
W11 x 28	Adjustible	Tractor	8	M18	110.5	152.4	-	-		-		15.7	NO			12
W11 x 28	Adjustible	Tractor	8	M18	221	275	-	-		-		15.7	NO			12
W11 x 28	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M18	110.5	152.4	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M18	140	203	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M18	109.5	152.4	-	-		-		15.7	NO			12
W11 x 28	Adjustible	Tractor	8	M16DC90	109.5	152.4	-	-		-		15.7	NO			12
W11 x 28	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			12
W11 x 28	Adjustible	Tractor	8	M16	150.1	203.2	-	-		-		15.7	NO			12
W11 x 28	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M16	109.5	152.4	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			12
W12 x 28	Adjustible	Tractor	8	M14	290.5	330	-	-		-		15.7	NO			12
W10 x 28	Adjustible	Tractor	8	M18	110	152	-	-		-		15.7	NO			14
W10 x 28	Adjustible	Tractor	8	M18	221	275	-	-		-		15.7	NO			14
W10 x 28	Adjustible	Tractor	8	M14	290.5	330	-	-		-		15.7	NO			14
W14Lx28	Adjustible	Tractor	6	M18	285.25	325	-	-		-		15.7	NO			18
28xDW18L	(x) Fixed wheel	Tractor	10	M20	281	335	-35	-		5		15.7	NO	No	Yes	6	180
28xDW18L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	176	225	-90	-		5		15.7	YES	No	Yes	6	180
W13 x 28	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-5	-		5		15.7	NO	No	Yes	9	270
W13 x 28	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-5	-		5		15.7	NO	No	Yes	9	270
W13 x 28	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-5	-	14.9-28	5		15.7	NO	No	Yes	9	270
W13 x 28	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-5	-	14.9-28	5		15.7	NO	No	Yes	9	270
W13 x 28	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-5	-		5		15.7	NO	No	Yes	9	270
W13 x 28	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-5	-		5		15.7	NO	No	Yes	9	270
W11 x 28	(x) Fixed wheel	Tractor	8	M20	221	275	-50	-	11.2-28	5		15.7	NO	No	No	12	360
W10 x 28	(x) Fixed wheel	Tractor	10	M18	221.2	285.75	76	-		5		15.7	NO	No	No	12	360
W10 x 28	(x) Fixed wheel	Tractor	10	M18	221.2	285.75	76	-		5		15.7	NO	No	No	12	360
W11 x 28	(x) Fixed wheel	Tractor	10	M18	221.2	285.75	70	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	10	B3/4ES44.4	282.6	335	13.7	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	10	B3/4ES44.4	282.6	335	13.7	-		5		15.7	NO	No	No	12	360
W10 x 28	(x) Fixed wheel	Tractor	8	B14DC90	152.5	203.2	63.5	-		5		15.7	YES	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282.6	335	35.6	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282.6	335	35.6	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282.6	335	35.6	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	282.6	335	35.6	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222.8	275	48.6	-		5		15.7	NO	No	No	12	360
28x10	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	222.8	275	48.6	-		5		15.7	NO	No	No	12	360
28xDW20B	(x) Fixed wheel	Tractor	16	M16	271	305	-30	-		5		15.7	YES	No	Yes	3/ 6	177
28xDW20B	(x) Fixed wheel	Tractor	16	M14	271	305	-75	-		5		15.7	YES	No	Yes	3/ 6	177
W16L x 28	(x) Fixed wheel	Tractor	10	M20	281	335	-35	-		5		15.7	NO	No	Yes	4	168
W14L x 28	(x) Fixed wheel	Tractor	5	B19ES44.8	290	335	36	-	16.9R28	5		15.7	YES	No	Yes	6 / 9	267
W14L x 28	(x) Fixed wheel	Construction Machinery	5	B18ES44.8	290	335	60	-		5		15.7	YES	No	Yes	6 / 9	267
28xW15L	(x) Fixed wheel	Tractor	10	M20	281	335	-110.5	-		5		15.7	YES incl.valve	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M20	281	335	-25	-		5		15.7	YES incl.valve	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M22	280.2	335	-52.5	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M22	281	335	-122.5	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M22	281	335	0	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M22	281	335	-122.5	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M20	281	335	-60	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M20	281	335	-110.5	-	16.9R28	5		15.7	YES incl.valve	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M20	281	335	-25	-		5		15.7	YES incl.valve	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M18	281	335	-20	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	M18	221.2	285.75	70			5		15.7	NO	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	B19ES44.4	281	335	-22.2	-		5		15.7	NO valve only	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	5	B19ES44,.4	290	335	60	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	B19ES44	281	335	-22	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	280.5	335	-15	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	20	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	8	A3 = B22ES36	221	275	59	-		5		15.7	YES	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-90	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	-50	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	6 /9	225
28xW15L	Disc	Agricultural Machinery	-	-	100	-	-	-		-		-	NO	No	-	6 /9	225
W14L x 28	(x) Fixed wheel	Construction Machinery	5	B18ES44.8	290	335	60	-		5		15.7	YES	No	Yes	6/ 9	267
28xW15L	(x) Fixed wheel	Tractor	8	M18	140	203.2	-6	-		5		15.7	YES	No	Yes	6/9	225
28xW15L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	6/9	225

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
DW14L x 30	(x) Fixed wheel	Tractor	8	M18	149.7	203.2	20			5		15.7	NO			4	130
30 x DW16L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-80	-		5		15.7	NO			4	210
30 x DW16L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	0	-		5		15.7	NO			4	210
DW14L x 30	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-50	-		5		15.7	NO			4
DW14L x 30	(x) Fixed wheel	Tractor	8	B2 = B18DS32	149.7	203.2	20	-		5		15.7	NO			4	130
DW14L x 30	(x) Fixed wheel	Tractor	8	B2 = B18DS32	150	205	70	-		5		15.7	NO			4	130
30 x DW16L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	70	-		5		15.7	NO			4	210
30 x DW16L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			4	210
DW14L x 30	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	70	-		5		15.7	NO			4	130
30 x DW16L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			4	210
DW15L x 30	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			4
DW15L x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			8
DW15L x 30	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			8
W15L x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			8
W15L x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			8
W15L x 30	Adjustible	Tractor	8	M18	152.3	203.2	-	-		-		15.7	NO			8
W15L x 30	Adjustible	Tractor	8	M18	152.3	203.2	-	-		-		15.7	NO			8
DW15L x 30	Adjustible	Tractor	8	M16	153.5	203.2	-	-		-		15.7	NO			8
DW13L x 30	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			9
DW13L x 30	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			9
DW13L x 30	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			10
DW13L x30	Adjustible	Tractor	8	M18	110.5	152.4	-	-		-		15.7	NO			10
DW13L x30	Adjustible	Tractor	8	M18	140	203.2	-	-		-		15.7	NO			10
W13 x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			10
W13 x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			10
W13 x 30	Adjustible	Tractor	8	M18	109.5	152.4	-	-		-		15.7	NO			10
W14L x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			10
W14L x 30	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			10
W13 x 30	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			10
W13 x 30	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			10
W14L x 30	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			10
W14L x 30	Adjustible	Tractor	8	M16	150.1	200	-	-		-		15.7	NO			10
30xDW20B	(x) Fixed wheel	Tractor	10	M18	281	335	-50	-		5		15.7	NO	No	Yes	3	78
30xDW23B	(x) Fixed wheel	Tractor	10	M22	281	335	-60	-		5		15.7	YES	No	Yes	6	126
30xDW23B	(x) Fixed wheel	Tractor	16	M22	271	305	-30	-		5		15.7	YES	No	Yes	6	126
30xDW23B	(x) Fixed wheel	Tractor	8	M20	221	275	75	-		5		15.7	YES	No	Yes	6	126
30xDW23B	(x) Fixed wheel	Tractor	16	M14	271	305	-80	-		5		15.7	YES	No	Yes	6	126
30xDW23B	(x) Fixed wheel	Tractor	16	M14	271	305	-75	-		5		15.7	YES	No	Yes	6	126
30xDW18L	(x) Fixed wheel	Tractor	10	M22	281	335	4	-		5		15.7	YES	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	10	M20	281	335	24			5		15.7	YES	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	16	M16	271	305	-85	-		5		15.7	YES	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	10	M20	281	335	-80	-		5		15.7	NO	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	10	M20	281	335	30			5		15.7	YES	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	16	M14	271	305	-11	-		5		15.7	YES	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	16	M14	271	305	23	-		5		15.7	YES	No	Yes	8	168
30xDW18L	(x) Fixed wheel	Tractor	16	M14	271	305	3	-		5		15.7	YES	No	Yes	8	168
30xDW16L	(x) Fixed wheel	Tractor	10	M22	281	335	10	-		5		15.7	YES	No	Yes	10	210
30xDW15L	(x) Fixed wheel	Construction Machinery	10	M20	176.5	225	-65.8	-		5		15.7	NO	No	Yes	10	210
30xDW16L	(x) Fixed wheel	Tractor	10	M20	281	335	-35	-		5		15.7	NO	No	Yes	10	210
30xDW15L	(x) Fixed wheel	Tractor	20	M16	280	305.5	30	-		5		15.7	NO	No	Yes	10	210
30xDW16L	(x) Fixed wheel	Tractor	16	M14	271	305	-5	-		5		15.7	YES	No	Yes	10	210
30x16	(x) Fixed wheel	Construction Machinery	10	B26ES44	301	365	-10	-		MOLD ON			NO	No	No	10	210
30x16	(x) Fixed wheel	Construction Machinery	10	B26ES44	301	365	-10	-		MOLD ON			NO	No	No	10	210
30x16	(x) Fixed wheel	Construction Machinery	10	B19IC90ES44	231	295	-10.5	-		MOLD ON			NO	No	No	10	210
30x16	(x) Fixed wheel	Construction Machinery	10	B19IC90ES44	231	295	-10.5	-		MOLD ON			NO	No	No	10	210
30xW15L	(x) Fixed wheel	Tractor	8	A3 = B22ES36	221	275	29	-	16.9-30 6PR	5		15.7	YES	No	Yes	10	210
30xDW15L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	Yes	10	210
30xDW16L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	Yes	10	210
30xW15L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	YES	No	Yes	10	210
30xDW15L	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	10	210
30xW15L	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	10	210

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	366	415	3			5		15.7	YES	No	Yes	3	78
32xDW21B	Disc	Agricultural Machinery	10	A3 = B22ES36	281	335	-	-		-		-	NO	No	-	18	468
32xDW21B	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	35	-		5		15.7	NO	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	12	M22	366	415	-24	-		5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	16	M20	361	400	-28	-		5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	16	M20	361	400	55	-		5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	35	-		5		15.7	NO	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Construction Machinery	16	M22	370.2	425	40	-		5		15.7	Yes	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Construction Machinery	16	M22	370.2	425	40	-		5		15.7	Yes	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		5		15.7	YES incl.valve	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0			5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0			5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	16	M18	361	400	45	-		5		15.7	YES	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-70	-		5		15.7	NO	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		5		15.7	NO	No	Yes	2 /4	102
32xDW21B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	2 /4	102
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-82	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-100	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-100	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M18	281	335	38	-		5		2-Φ15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M18	281	335	38	-		5		2-Φ15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M18	281	335	38	-		5		2-Φ15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M20	366	415	-70	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	38	-		5		2-Φ15.7	NO	Yes	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-100	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-40	-		5		15.7	NO	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	-74	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	0	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	371	425	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-74	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-74	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	0	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-74	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-74	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-74	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	-40	-		5		15.7	NO	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	-70	-		5		15.7	NO	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	366	415	142.7	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	366	415	-9	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	351	400	-142.7	-		5		15.7	YES incl.valve	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-70	-		5		15.7	NO	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	12	M22	351	400	-142.7	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	38			5		15.7	NO	Yes	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	30			5		15.7	NO	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-74	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	16	M18	361	400	-16	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	16	M18	361	400	3.5	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	16	M18	361	400	-75	-		5		15.7	YES	No	Yes	3	78
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-70	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW27B	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		5		15.7	YES	No	Yes	6/ 8/ 4/ 2	90
32xDW21B	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	2 /4	102
32xDW27B	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	Yes	6/ 8/ 4/ 2	90

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
34 x DW16L	(x) Fixed wheel	Tractor	8	M22	221	275	-48	-		5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-80	-		5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-30	-		5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	8	A3 = B22ES36	221	275	80			5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	15			5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	8	A3 = B22ES36	221	275	0	-		5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	10	A3 = B22ES36	281	335	0	-		5		15.7	NO			4
34 x DW16L	(x) Fixed wheel	Tractor	8	A2 = B18ES32	221	275	0	-		5		15.7	NO			4
DW15L x 34	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			4
DW15L x 34	Adjustible	Tractor	8	M20	177	225	-	-		-		15.7	NO			8
DW15L x 34	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			8
DW15L x 34	Adjustible	Tractor	8	M18	140	203.2	-	-		-		15.7	NO			8
DW15L x 34	Adjustible	Tractor	8	M18	152.3	203.2	-	-				15.7	NO			8
34xDW18L	(x) Fixed wheel	Tractor	10	M18	220.5	285.75	-	-		5		15.7	NO	No	Yes	4	96
34xDW23B	(x) Fixed wheel	Tractor	12	M22	366	415	-19	-		5		15.7	YES	No	Yes	2 /4	72
34xDW23B	(x) Fixed wheel	Tractor	8	M22	221	275	-30			5		15.7	NO	No	Yes	2 /4	72
34xDW23B	(x) Fixed wheel	Tractor	16	M18	361	400	-23	-		5		15.7	YES	No	Yes	2 /4	72

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
W11 x 36	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			6
W11 x 36	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			12
W11 x 36	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			12
W11 x 36	Adjustible	Tractor	8	M18	140	203.2	-	-		-		15.7	NO			12
W11 x 36	Adjustible	Tractor	8	M18	152.3	203.2	-	-		-		15.7	NO			12
W11 x 36	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			12

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
38 x DW16L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-80	-		5		15.7	NO			4
38 x DW16L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-30	-		5		15.7	NO			4
DW12 x 38	Adjustible	Tractor	8	M18	152.4	203.2	-	-		-		15.7	NO			4
DW15L x 38	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			8
DW15L x 38	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			8
DW15L x 38	Adjustible	Tractor	8	M18	152.4	203.2	-	-				15.7	NO			10
DW12 x 38	Adjustible	Tractor	8	M18	150.1	203.2	-	-		-		15.7	NO			12
DW12 x 38	Adjustible	Tractor	8	M18	140	203.2	-	-		-		15.7	NO			12
38xDW20B	(x) Fixed wheel	Tractor	10	M20	281	335	-40	-		5		15.7	NO	No	Yes	3	66
38xDW18L	(x) Fixed wheel	Tractor	10	M20	281	335	66.6	-		5		15.7	NO	No	Yes	4	88
38xDW18L	(x) Fixed wheel	Tractor	12	M20	351	400	-120.5	-		5		15.7	NO	No	Yes	4	88
38xDW18L	(x) Fixed wheel	Tractor	12	M20	351	400	-120.5	-		5		15.7	NO	No	Yes	4	88
38xDW18L	(x) Fixed wheel	Tractor	12	M20	300.7	355	-79.6	-		5		15.7	NO	No	Yes	4	88
38xDW18L	(x) Fixed wheel	Tractor	10	M20	281	335	-40	-		5		15.7	NO	No	Yes	4	88
38xDW18L	(x) Fixed wheel	Tractor	10	M18	281	335	38.1	-		5		15.7	NO	No	Yes	4	88
38xDW18L	(x) Fixed wheel	Tractor	8	B3 = B22DS36	221	275	-70	-		5		15.7	NO	No	Yes	4	88
38xDW18L	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		5		15.7	NO	No	No	4	88
38xDW18L	Disc	Agricultural Machinery	-	-	100	-	-	-		-		-	NO	No	-	4	88
38xDW23B	(x) Fixed wheel	Tractor	10	M20	281	335	-130	-		5		15.7	NO	No	Yes	2 /4	66
38xDW25B	(x) Fixed wheel	Tractor	12	M22	366	415	-31	-		5		15.7	YES	No	Yes	2 /4	66
38xDW25B	(x) Fixed wheel	Tractor	12	M20	366	415	-11	-		5		15.7	YES	No	Yes	2 /4	66
38xDW25B	(x) Fixed wheel	Tractor	16	M20	361	400	-15	-		5		15.7	YES	No	Yes	2 /4	66
38xDW27B	(x) Fixed wheel	Tractor	12	M22	366	415	-63	-		5		15.7	YES	No	Yes	2 /4	66
38xDW23B	(x) Fixed wheel	Tractor	12	M20	351	400	-185	-		5		15.7	NO	No	Yes	2 /4	66
38xDW23B	(x) Fixed wheel	Tractor	12	M20	351	400	-185	-		5		15.7	NO	No	Yes	2 /4	66
38xDW23B	(x) Fixed wheel	Tractor	10	M20	281	335	-40	-		5		15.7	NO	No	Yes	2 /4	66
38xDW27B	(x) Fixed wheel	Tractor	10	M20	281	335	-100	-		5		15.7	NO	No	Yes	2 /4	66
38xDW27B	(x) Fixed wheel	Tractor	10	M20	281	335	-100	-		5		15.7	Yes	No	Yes	2 /4	66
38xDW23B	(x) Fixed wheel	Tractor	10	M18	281	335	0	-		5		15.7	NO	No	Yes	2 /4	66
38xDW23B	(x) Fixed wheel	Tractor	10	M18	281.5	335	13.6	-		5		15.7	NO	No	Yes	2 /4	66
38xDW25B	(x) Fixed wheel	Tractor	16	M18	361	400	-60	-		5		15.7	YES	No	Yes	2 /4	66
38xDW27B	(x) Fixed wheel	Tractor	16	M18	361	400	-60	-		5		15.7	YES	No	Yes	2 /4	66

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
42xDW18L	(x) Fixed wheel	Tractor	10	M18	281.2	335	38.1	-		5		15.7	NO	No	Yes	4	80
42xDW23B	Blank Rim	Tractor	-	-	-	-	-	-		5		15.7	NO	No	Yes	2 /4	60
42xDW23B	(x) Fixed wheel	Tractor	12	M22	366	415	-3	-		5		15.7	YES	No	Yes	2 /4	60
42xDW23B	(x) Fixed wheel	Tractor	12	M20	366	415	17	-		5		15.7	YES	No	Yes	2 /4	60
42xDW23B	(x) Fixed wheel	Tractor	16	M22	361	400	-44	-		5		15.7	YES	No	Yes	2 /4	60
42xDW28B	(x) Fixed wheel	Tractor	12	M22	366	415	-67	-		5		15.7	YES	No	Yes	2 /4	60
42xDW28B	(x) Fixed wheel	Tractor	16	M22	361	400	-67	-		5		15.7	YES	No	Yes	2 /4	60
42xDW23B	(x) Fixed wheel	Tractor	16	M20	361	400	-4	-		5		15.7	YES	No	Yes	2 /4	60
42xDW23B	(x) Fixed wheel	Tractor	10	M18	281.5	335	13.6	-		5		15.7	NO	No	Yes	2 /4	60
42xDW23B	(x) Fixed wheel	Tractor	10	M18	281.5	335	13.6	-		5		15.7	NO	No	Yes	2 /4	60

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Offset twin wheels

Tire sizes

Tyre angle

Hump

Valve Hole

Valve protection

Flange Reinforced

Knirling

Wheel qty per pallet

Wheels in 40HQ Container

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

420x174

Base Band

Forklift

M20

200.2

240

-47

MOLD ON

696

420x250

Base Band

Forklift

M20

200.2

240

-17

MOLD ON

560

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Offset twin wheels

Tire sizes

Tyre angle

Hump

Valve Hole

Valve protection

Flange Reinforced

Knirling

Wheel qty per pallet

Wheels in 40HQ Container

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

475x230

Base Band

Forklift

M16

220.2

260

-10

MOLD ON

480

475x230

Base Band

Forklift

M16

220.2

260

-10

MOLD ON

480

475x255

Base Band

Forklift

M16

220.2

260

2.5

MOLD ON

480

475x255

Base Band

Forklift

M16

220.2

260

2.5

MOLD ON

480

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Offset twin wheels

Tire sizes

Tyre angle

Hump

Valve Hole

Valve protection

Flange Reinforced

Knirling

Wheel qty per pallet

Wheels in 40HQ Container

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

480x250

Base Band

Forklift

M16

270

310

-98.5

MOLD ON

480

480x250

Base Band

Forklift

M16

270

310

-98.5

MOLD ON

480

480x250

Base Band

Forklift

M16

241.6

282.6

-66

MOLD ON

480

480x250

Base Band

Forklift

M16

241.6

282.6

-66

MOLD ON

480

480x250

Base Band

Forklift

M14

265

300

-45

MOLD ON

480

480x250

Base Band

Forklift

M14

265

300

-45

MOLD ON

480

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Offset twin wheels

Tire sizes

Tyre angle

Hump

Valve Hole

Valve protection

Flange Reinforced

Knirling

Wheel qty per pallet

Wheels in 40HQ Container

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

14.5x7.00

(x) Fixed wheel

Construction Machinery

B14EC90

200.5

241.3

-23

15.7

20/ 30

1300

14.5x7.00

(x) Fixed wheel

Construction Machinery

B14EC90

200.5

241.3

-23

15.7

20/ 30

1300

14.5x7.00

(x) Fixed wheel

Construction Machinery

B14DC90

152.5

203.2

-23

15.7

20/ 30

1300

14.5x7.00

(x) Fixed wheel

Construction Machinery

B14DC90

152.5

203.2

-23

15.7

20/ 30

1300

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
9.00 x 15.3	(x) Fixed wheel	Construction Machinery	6	M18	161	205	59	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	M14	Star	206	34	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	4	M14	94	140	-50	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-50	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-40	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	15	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-75	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-40	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	40	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	45	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	56	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Construction Machinery	5	B14ES28	94	140	-11	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Construction Machinery	5	B14ES28	127.8	165.1	-17	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	10	B14ES28	94	140	63	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-61	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	109.5	165.1	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	127.8	165.1	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-32	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	10	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	127.8	165.1	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	127.8	165.1	4	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	-55	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	102	140	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	66.5	112	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	-20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	-25	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	-30	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	94	140	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	157	205	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14ES28	110	160	8	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Construction Machinery	6	B14EC90	117.5	152.4	60	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	117.5	152.4	-20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	117.5	152.4	90	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	117.5	152.4	80	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14EC90	94	140	-20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B14EC90	161	205	60	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B14EC60	117.7	152.4	-12	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	66.5	112	60	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	5	B14DS28	66.5	112	40	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	B14DC90	117.5	152.4	26	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	40	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	15	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	32	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-59	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-25	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-20	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5		15.7	NO			64
9.00 x 15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO			64
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	M14	161	205	-24	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	B16ES28	100.5	140	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	5	B16ES28	94	140	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	B14ES28	100.5	140	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-30	-		5		15.7	NO	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO valve only	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	NO	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES incl.valve	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-	10/75-15.3 11.5/80-15.3 12.5/80-15.3 300/80-15.3	5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		5		15.7	YES	No	No	16/ 20 /24/ 30	1170
9.00x15.3	Blank Rim	Agricultural Machinery	-	-	-	-	-			5		15.7	-	No	No	16/ 20 /24/ 30	1170

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	176	225	-15	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	10	A2 = B18ES32	176	225	-15	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-20	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			40
15.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			40
15.5 x AG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	NO			40
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	M18	140	190	9.5	-		15	TH2	15.7	NO valve only	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	M18	140	190	9.5	-		15	TH2	15.7	NO valve only	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	M12	118.2	152.4	-90	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	M12	118.2	152.4	-88	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES incl.valve	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	0	-		15	TH2	15.7	YES incl.valve	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-70	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-20	-		15	TH2	15.7	YES incl.valve	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	-20	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	5	B19DC90	150.5	205	0	-		15	TH2	15.7	YES incl.valve	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B14ES28	100.5	140	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-72	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	0	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	0	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.7	152.4	-25	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	NO valve only	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES incl.valve	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-9.5	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	NO valve only	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	Yes	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	Yes	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	NO	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES incl.valve	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	NO valve only	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-	400/60-15.5	15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	12 / 18	780
15.5xAG13.00TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	12 / 18	780

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Offset twin wheels

Tire sizes

Tyre angle

Hump

Valve Hole

Valve protection

Flange Reinforced

Knirling

Wheel qty per pallet

Wheels in 40HQ Container

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

11 x 16.1

(x) Fixed wheel

Construction Machinery

A2 = B18ES32

161

205

-63.5

15.7

11 x 16.1

(x) Fixed wheel

Agricultural Machinery

A2 = B18ES32

161

205

15.7

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
16.5 x AG9.75	(x) Fixed wheel	Agricultural Machinery	8	M20	221	275	0	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Agricultural Machinery	10	M14	93	140	-19	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	4	BUNF34ES44.8	221	275	-50	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	4	BUNF34ES44.8	221	275	32	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	60	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Agricultural Machinery	6	B2 = B18DS32	161	205	45	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	70	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	20	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-32	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	6	B14DC90	117.4	152.4	-100	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	20	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	120	170	-68.5	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	10	-		15		15.7	NO			36
16.5 x AG9.75	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			36
16.5 x AG8.25	(x) Fixed wheel	Agricultural Machinery	10	M14	93	140	10	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	4	BUNF34ES44.8	221	275	5	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-40	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	40	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	-75	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	161	205	50	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	5	B14ES28	94	140	-20	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	B14EC90	117.4	152.4	41	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-29	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-21.3	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	12.2	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	B14EC90	117.4	152.4	9.5	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	9.5	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	130.8	165.1	-29	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	130.8	165.1	-3.5	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	5	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	25	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	120	170	-31	-		15		15.7	NO			42
16.5 x AG8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			42
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M20	140	190	9.5	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221.4	275	50	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221.4	275	50	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221	275	17	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221.5	275	49.7	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	170.2	215	-32.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	170.2	215	-32.5	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	140	190	-30	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	140	190	-30	-		15		15.7	NO valve only	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	9	M16	200.5	241.3	-44.5	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M16	152	203.2	54	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	9	M12	200.2	241.3	57.5	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	5	B14ES28	95	140	25	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-49.2	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	28.6	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	20	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	12.7	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	59.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-10.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	59.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	12	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-33.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-33.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	9.6	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-26.5	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.5	203.2	36	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	-62.5	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	-34	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	16	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-22	-		15		2-φ15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-22	-		15		2-φ15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	44	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	44	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-31.8	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-31.8	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	5	B10EC60	72	152.4	39	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	162.1	205	0	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES incl.valve	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	15	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	15	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-21	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-21	-		15		15.7	YES	No	No	12/16/ 18/ 24	1030
16.5x9.75	Blank Rim	Construction Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	12/16/ 18/ 24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M20	140	190	9.5	-		15		15.7	NO valve only	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M20	221	275	19	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221.4	275	50	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221	275	17	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M18	221.5	275	49.7	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	170.2	215	-32.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	170.2	215	-32.5	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	160	205	-35	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	M18	140	190	-30	-		15		15.7	NO valve only	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	9	M16	200.5	241.3	-44.5	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	M16	152	203.2	54	-		15		15.7	NO valve only	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Agricultural Machinery	6	M16	135	170	-54	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	9	M12	200.2	241.3	57.5	-		15		15.7	NO valve only	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	5	B14ES28	95	140	25	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-49.2	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-49.2	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-49.2	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	28.6	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	20	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	12.7	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	59.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-10.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	59.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-33.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-33.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	9.6	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-11	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-26.5	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	25	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	25	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.5	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.5	203.2	36	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	-62.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.5	203.2	-4	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	-34	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	16	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	16	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	-49	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	-49	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-22	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-22	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-22	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-22	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	44	-		15		15.7	NO valve only	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	44	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-31.8	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-31.8	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	36	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14DC60	152.4	203.2	-62.5	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	B14C90	152.4	203.2	12	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	5	B10EC60	72	152.4	39	-		15		15.7	NO	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	162.1	205	0	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	15	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	15	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-21	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-21	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	152.4	203.2	-30	-		15		15.7	YES	No	No	12/16/18/24	1030
16.5x9.75	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	152.4	203.2	-30	-		15		15.7	YES incl.valve	No	No	12/16/18/24	1030
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	M14	95	140	8	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	M14	95	140	-22	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	M20	140	190	9.5	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	10	M14	95	140	20	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	160	205	0	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	160	205	0	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B19ES44	150	200	60	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	9	B18ES30	204	241.3	7	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-22.4	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	9	B14EC90	203.2	241.3	-14	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	9	B14EC90	203.2	241.3	-53	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-	10-16.5	15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC60	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	9	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	9	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	0	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	9	-		15		2-φ15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	9	-		15		2-φ15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	-29	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	25	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	25	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	15	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.4	152.4	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.4	152.4	9.5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152	5	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B10EC90	117.7	152.4	0	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B10EC90	117.7	152.4	0	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	152.8	203.2	0	-		15		15.7	YES incl.valve	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	162	205	0	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	160	205	-62	-		15		15.7	YES	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	-26	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	Blank Rim	Construction Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	16/ 20/ 24/ 30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	M20	140	190	9.5	-		15		15.7	NO valve only	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	M16	135	170	-26	-		15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	10	M14	95	140	20	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B2 = B18DS32	160	205	0	-		15		15.7	NO valve only	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B19ES44	150	200	60	-		15		15.7	NO valve only	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	9	B18ES30	204	241.3	7	-		15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.4	203.2	-22.4	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	5	-		15		15.7	YES incl.valve	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	9	B14EC90	203.2	241.3	-14	-		15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	9	B14EC90	203.2	241.3	-53	-		15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC90	152.5	203.2	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B14EC60	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC60	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14EC60	152.4	203.2	9	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	9	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	9	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	9	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	9	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	-29	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	25	-		15		15.7	NO valve only	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	25	-		15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.4	203.2	15	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.5	203.2	75	-		15		15.7	NO valve only	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	10.4	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	10.4	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-42			15		15.7	NO	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	B14DC90	152.5	203.2	-42			15		15.7	NO valve only	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.4	152.4	9.5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152.4	5	-		15		15.7	YES incl.valve	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B12EC90	117.5	152	5	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B10EC90	117.7	152.4	0	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	B10EC90	117.7	152.4	0	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	-30	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	152.8	203.2	0	-		15		15.7	YES incl.valve	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	162	205	0	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	160	205	-62	-		15		15.7	YES	No	No	16/20/24/30	1170
16.5x8.25	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	-26	-		15		15.7	NO	No	No	16/20/24/30	1170

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
17.5 x 10.50	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	36	-		15		15.7	NO			15
17.5 x 10.50	(x) Fixed wheel	Construction Machinery	5	BUNF34ES44.8	291	335	12	-		15		15.7	NO			15
17.5 x 7.50H2	(x) Fixed wheel	Urban Utility Vehicles	6	B14ES28	84	130	63	-		15	H2	11.3	NO			40
17.5 x 6.75	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	176	225	55	-		15		9.7	NO			40
17.5 x 6.75	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	0	-		15		9.7	NO			40
17.5 x 7.50	(x) Fixed wheel	Urban Utility Vehicles	6	A2 = B18ES32	161	205	12.5	-		15		9.7	NO			40
17.5x10.5	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-47.9	-	756	15		15.7	YES	No	No	12/ 16/ 15/ 20	756
17.5x10.5	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-47.9	-	756	15		15.7	YES incl.valve	No	No	12/ 16/ 15/ 20	756
17.5x10.5	(x) Fixed wheel	Construction Machinery	8	B14EC90	184.2	223.84	-32.9	-		15		15.7	YES	No	No	12/ 16/ 15/ 20	756
17.5x10.5	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	11.5	-		15		15.7	NO	No	No	12/ 16/ 15/ 20	756
17.5x10.5	(x) Fixed wheel	Agricultural Machinery	8	B16EC90	152.4	203.2	0			15		15.7	NO	No	No	12/16/15/ 20	756
17.5x10.5	(x) Fixed wheel	Construction Machinery	8	B14EC90	184.2	223.84	-32.9	-		15		15.7	YES	No	No	12/16/15/ 20	756
17.5x10.5	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-47.9	-		15		15.7	YES	No	No	12/16/15/ 20	756
17.5x10.5	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	260	11.5	-		15		15.7	NO	No	No	12/16/15/ 20	756
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	M14	120.65	165.1	4.8	-		15		15.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	M14	120.65	165.1	4.8	-		15		15.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	B19DS44	164	222.25	0	-		15		9.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	B19DS44	164	222.25	0	-		15		9.7	NO valve only	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Construction Machinery	8	B18EC90	221	275	10	-		15		15.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	YES	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	YES	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	YES	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	YES	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	YES	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38.1	-		15		2-φ15.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38.1	-		15		2-φ15.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	B12DC90	117.7	152.4	-29	-		15		15.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-	8R17.5 8.5R17.5 9.5R17.5 205/75R17.5 215/75R17.5 225/70R17.5 225/75R17.5 235/75R17.5 245/70R17.5	15		9.7	NO	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	YES	No	No	20/ 25	1080
17.5x6.75HC	(x) Fixed wheel	Construction Machinery	8	B18EC90	221	275	10	-		15		15.7	NO	No	No	20/ 25	1080
17.5x10.5	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	12/ 16/ 15/ 20	756

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)		Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	M22	221	275	-20	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	M22	221	275	30	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-50	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	90	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-75	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-10	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	289.7	335	-75	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	B3 = B22DS36	221	275	-75	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	0	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	176	225	0	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	A3 = B22ES36	221	275	-10	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	221	275	-10	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	8	A2 = B18ES32	227	275	0	-		15		15.7	NO			16
19.5 x AG14.00	(x) Fixed wheel	Construction Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			16
19.5x11.75	(x) Fixed wheel	Agricultural Machinery	6	M22	133.4	171.45	-28	-		15		15.7	NO	No	No	12	528
19.5x11.75	(x) Fixed wheel	Agricultural Machinery	6	M16	161	205	-74	-		15		15.7	NO	No	No	12	528
19.5x11.75	(x) Fixed wheel	Agricultural Machinery	9	M14	201.6	241.3	-35	-		15		15.7	NO	No	No	12	528
19.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-	365/40R19.5 385/55R19.5 385/65R19.5	15		15.7	NO	No	No	12	528
19.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	NO	No	No	12	528
19.5x11.75	Blank Rim	Agricultural Machinery	-	-	-	-	-			15		15.7	-	No	No	12	528
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	0			15		9.7	YES	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		9.7	YES	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	YES	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	NO	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	NO	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	NO	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	NO	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-	255/60R19.5 265/55R19.5 265/70R19.5 285/70R19.5 285/70R19.5 305/70R19.5	15		9.7	YES	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	YES	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		9.7	YES	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		9.7	NO	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		9.7	NO	No	No	16	704
19.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0			15		15.7	YES	No	No	16	704
19.5x7.50	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-5	-	245/70R19.5 255/60R19.5 265/70R19.5 285/70R19.5	15		15.7	NO	No	No	16/ 20	792
19.5x6.75	(x) Fixed wheel	Agricultural Machinery	6	B14DC90	117.5	152.4	28			15		2-φ15.7	NO	No	No	16/20	880
19.5x6.75	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	28.6			15		2-φ15.7	NO	No	No	16/20	880
19.5x14.00	(x) Fixed wheel	Construction Machinery	10	M22	281.1	335	-40	-		15		15.7	YES incl.valve	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	0	-	425/55R19.5 435/50R19.5 445/45R19.5	15		15.7	NO	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	176	225	0	-		15		15.7	NO	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		15.7	NO	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		15.7	NO	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	20	-		15		15.7	YES	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-75	-		15		15.7	NO	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-75	-		15		15.7	NO	No	No	8/12	520
19.5x14.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	NO	No	No	8/12	520

Wheel Size

Type of wheel

Applications

Bolt Hole

Bolt Hole Type

Center Hole

P.C.D

Offset
Inset

Tyre angle

Hump

Valve Hole

Valve protection

Wheel qty per pallet

NO.

(EUWA)

(mm)

degrees (°)

(mm)

option Code "600"

(pieces)

20.5 x 16.00TH2

(x) Fixed wheel

Urban Utility Vehicles

M22

281

335

TH2

15.7

20.5 x 16.00TH2

(x) Fixed wheel

Urban Utility Vehicles

M22

281

335

-78

TH2

15.7

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	20	-		15		9.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	-45	-		15		15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	221.2	285,75 (11.25")	-48	-		15	TH2	15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-70	-		15		15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Construction Machinery	10	B3 = B22DS36	281	335	-40	-		15		15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-121	-		15		15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	70	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-100	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15	TH2	15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15		15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15		15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		9.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	65	-		15		9.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	60	-		15		9.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	30	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-15	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	50	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-30	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	70	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-15	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO			16
22.5 x AG14.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		9.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	15	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-95	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO			16
22.5 x AG16.00TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	NO			16
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	10	M20	221.2	285,75 (11.25")	0	-		15	H	15.7	NO			20
22.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	10	M18	221.2	285,75 (11.25")	0	-		15		15.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	8	B3 = B22DS36	221	275	-50	-		15	H	9.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-33	-		15	H	15.7	NO			20
22.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	0	-		15		15.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	H	15.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	H	15.7	NO			20
22.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15		15.7	NO			20
22.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		9.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-55	-		15	H	9.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-45	-		15	H	9.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-40	-		15	H	9.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	H	9.7	NO			20
22.5 x AG11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	H	15.7	NO			20
22.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15		15.7	NO			20
22.5 x AG13.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		9.7	NO			20
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	224	285.75	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
9.00x22.5	(x) Fixed wheel	Construction Machinery	10	M22	281	335	0	-		15		15.7	NO	No	No	12/16	560
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-35	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-46	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-46	-		15	TH2	15.7	NO	No	No	8	320
9.00x22.5	(x) Fixed wheel	Construction Machinery	10	M22	281	335	0	-		15		15.7	NO	No	No	12/16	560
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	221.3	285.75	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	221.3	285.75	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	219	285.75	-50.8	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	224	285.75	-50.8	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	224	285.75	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	281	335	-48	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	281	335	-48	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	M14	152.65	203.2	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	M14	291	330	-55	-		15	TH2	15.7	YES	No	No	8	320
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	50.8	-		15		15.7	NO	No	No	12/16	560
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B22ES44	221.5	285.75	90			15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B18ES32	221	275	65			15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B18ES32	221	275	65			15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B18ES32	221	275	65			15	TH2	15.7	NO	No	No	8	320
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	50.8	-		15		15.7	NO	No	No	12/16	560
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	50.8	-		15		15.7	NO	No	No	12/16	560
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	50.8	-		15		15.7	NO	No	No	12/16	560
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B16EC90	152.4	203.2	-70	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B16DC90	221	275	10	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-46.1	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	221	275	-48	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	221	275	-48	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO valve only	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO valve only	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	10	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-9	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-15	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-15	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-15	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-25	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-25	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-25	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-25	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO valve only	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO valve only	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO valve only	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO valve only	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-50	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-75	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-80	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	50	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	50	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-15	-		15	TH2	15.7	YES	Yes	No	8	320
22.5xAG16.00 TH2	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	0	-		15	TH2	15.7	YES	No	No	8	320
22.5xAG16.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	8	320
22.5xAG16.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	8	320
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	161	-		15		15.7	YES incl.valve	No	No	12/16	560
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	161	-		15		15.7	NO	No	No	12/16	560
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	161	-		15		15.7	NO	No	No	12/16	560
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	161	-	12R22.5 13R22.5 285/60R22.5 295/60R22.5 295/80R22.5 305/60R22.5 305/70R22.5 315/60R22.5 315/70R22.5 315/75R22.5 315/80R22.5	15		15.7	NO	No	No	12/16	560
9.00x22.5	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	161	-		15		15.7	NO	No	No	12/16	560
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	M18	152.7	203.2	8	-		15		15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	10	M18	223.2	285.75	0	-		15		15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	M22	221	275	32	-		15		2-φ15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	-25	-		15		2-φ15.7	NO	No	No	8/12	396
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	M20	152.7	203.2	-25	-		15		2-φ15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	M18	152.7	203.2	8	-		15		15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	10	M18	223.2	285.75	0	-	400/55-22.5	15		15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	M14	152.5	203.2	7	-		15		15.7	NO	No	No	8/12	456
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	C90	152.7	203.2	8	-		15		15.7	NO	No	No	8/12	420
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.5	203.2	7	-		15		15.7	NO	No	No	8/12	456
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.5	203.2	28.5	-		15		15.7	NO	No	No	8/12	432
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.5	203.2	28.5	-		15		15.7	NO	No	No	8/12	432
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	7	-		15		15.7	NO	No	No	8/12	456
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	0	-		15		15.7	NO	No	No	8/12	456
22.5x13.00	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-25	-		15		15.7	NO	No	No	8/12	420
22.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	120	-		15		15.7	NO	No	No	8/12	400
22.5x14.00	(x) Fixed wheel	Agricultural Machinery	9	M14	200.4	241.3	-36	-	415/45R22.5 425/65R22.5 435/50R22.5 445/50R22.5 455/55R22.5	15		15.7	NO	No	No	8/12	400
22.5x14.00	(x) Fixed wheel	Agricultural Machinery	11	B19ES44	281	335	-78	-		15		15.7	NO	No	No	8/12	400
22.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		15.7	NO	No	No	8/12	400
22.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		15.7	NO	No	No	8/12	400
22.5x14.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-26.5	-		15		15.7	NO	Yes	No	8/12	380
22.5x16.00	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-46			15		15.7	NO	No	No	8	320
22.5x16.00	(x) Fixed wheel	Agricultural Machinery	10	M18	224	285.75	-50.8	-		15		15.7	NO	No	No	8	320
22.5x16.00	(x) Fixed wheel	Agricultural Machinery	8	M14	152.65	203.2	0			15		15.7	NO	No	No	8	320
22.5x16.00	(x) Fixed wheel	Agricultural Machinery	8	B16EC90	152.4	203.2	-57.2	-		15		15.7	NO	No	No	8	320
22.5x16.00	(x) Fixed wheel	Agricultural Machinery	8	B16EC90	152.4	203.2	-57.2	-		15		15.7	NO	No	No	8	320
22.5x16.00	(x) Fixed wheel	Agricultural Machinery	8	B16EC90	152.4	203.2	-57.2	-		15		15.7	NO	No	No	8	320
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-25	-		15		15.7	NO	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-97	-		15		15.7	NO	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	0	-		15		15.7	YES	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	-50	-		15		15.7	YES	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-60	-		15		15.7	NO	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	6	A2 = B18ES32	161	205	-140	-		15		15.7	NO	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15		15.7	NO	No	No	4/ 8	312
22.5xAG20.00	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15		15.7	NO	No	No	4/ 8	312
22.5xAG24.00	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-75	-		15		15.7	NO	No	No	4/ 8	240
22.5xAG24.00	(x) Fixed wheel	Agricultural Machinery	10	B19ES44	222	285.75	-75	-		15		15.7	NO	No	No	4/ 8	240
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	M18	221	275	-41	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		15		15.7	YES	No	No	12	480
22.5xAG16.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	8	320
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	M16	152.6	203.2	40	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Construction Machinery	16	M14	271.8	305	-7	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Construction Machinery	16	M14	271.8	305	-7	-		15		15.7	NO valve only	No	No	12	480
22.5x11.75	(x) Fixed wheel	Construction Machinery	16	M14	271.8	305	-7	-		15		15.7	NO valve only	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	B22ES36	221	275	0			15		15.7	YES	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	9	B16ES28	200.5	241.3	50	-	355/50R22.5 365/70R22.5 375/50R22.5 375/90R22.5 385/55R22.5 385/65R22.5	15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	9	B16ES28	200.5	241.3	50	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	0	-		15		9.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-33	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-28.5	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-28.5			15		2-φ15.7	NO	No	No	12	480
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	221	285.75	-101.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15		15.7	YES	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	37	-		15		15.7	NO	No	No	12	480
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-97	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-97	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	-5	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	-5	-		15	TH2	15.7	NO valve only	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220.2	285.75	25	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	223.7	285.75	25	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-25	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	NO	No	No	12	480
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-75	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-75	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	-50.8	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	-63	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	223.7	285.75	75	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	220.2	285.75	-42.8	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	220.2	285.75	-42.8	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	220.2	285.75	-93.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	220.2	285.75	-93.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	221	285.75	-101.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	221	285.75	-101.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-70	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-48	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	223.7	285.75	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	221.2	285.75	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-60	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-48	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	18	M16	281	330	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	NO	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B22EC90	220	285.75	-5	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B22EC90	220	285.75	-63	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B19DS44.4	224.3	285.75	-93.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B19DS44.4	224.3	285.75	-93.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B19DS44.4	224.3	285.75	-93.6	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B19DS44	224.3	285.75	-42.8	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B19DS44	224.3	285.75	-42.8	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-70	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-48	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-48	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-10	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-65	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-15	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-25	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-35	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	Yes	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	YES	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-10	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	18	A2 = B18ES32	270.5	305	-100	-		15	TH2	15.7	NO valve only	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	4/ 8	240
22.5xAG20.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	312
22.5xAG24.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5xAG24.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	4/ 8	240
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES incl.valve	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5x11.75	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15		15.7	YES	No	No	12	480
22.5x7.50	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.5	203.2	20.3	-	10R22.5 11R22.5 255/70R22.5 265/60R22.5 275/70R22.5 275/80R22.5	15		15.7	NO	No	No	16	576
22.5x7.50	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.5	203.2	20.3	-	10R22.5 11R22.5 255/70R22.5 265/60R22.5 275/70R22.5 275/80R22.5	15		15.7	NO	No	No	16	576
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	C90	152.4	203.2	-38.1	-		15		15.7	YES	No	No	16	640
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	C90	152.4	203.2	-38.1	-		15		15.7	NO	No	No	16	640
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	B90	117.7	152.4	28.5	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	NO	No	No	16	640
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14EC90	152.4	203.2	-38	-		15		15.7	NO	No	No	16	640
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38	-	11R22.5 12R22.5 255/70R22.5 265/60R22.5 275/80R22.5 285/60R22.5 295/80R22.5 305/70R22.5	15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38	-		15		15.7	NO	No	No	16	640
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.4	203.2	-38	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	-50	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	-50	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	28.5	-		15		15.7	NO	No	No	16	560
22.5x8.25	(x) Fixed wheel	Agricultural Machinery	6	B12EC90	117.7	152.4	28.5	-		15		15.7	NO	No	No	16	560
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220.2	285.75	25	-			TH2	15.7	NO	No	No	4/ 8	312
22.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220.2	285.75	25	-			TH2	15.7	YES	No	No	4/ 8	312
22.5x8.25	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15		9.7	NO	No	No	16	640
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	85	-		15	TH2	15.7	NO	No	No		240
22.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	85	-		15	TH2	15.7	YES	No	No		240

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
24.5x11.75	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-3	-		15		15.7	NO	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	8	M18	221	275	-3	-		15		15.7	NO	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	9	M16	201.5	241.3	-61.5	-	13R24.5	15		15.7	NO	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	9	M16	201.5	241.3	-61.5	-		15		15.7	NO	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	9	M16	201.5	241.3	-61.5	-		15		15.7	NO	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	9	M16	201.5	241.3	-61.5	-		15		15.7	NO	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	9	M16	201.5	241.3	-61.5	-		15		15.7	NO valve only	No	No	9	306
24.5x11.75	(x) Fixed wheel	Construction Machinery	9	M16	201.5	241.3	-61.5	-		15		15.7	NO	No	No	9	306
24.5x8.25	(x) Fixed wheel	Agricultural Machinery	8	B14DC90	152.6	203.2	-38.1	-	11R24.5	15		15.7	NO	No	No	16	432
24.5x15.00	(x) Fixed wheel	Construction Machinery	11	B19ES44	281.2	335	-58	-	18R24.5	15		15.7	NO	No	No	6/ 9	255
24.5x15.00	(x) Fixed wheel	Construction Machinery	11	B19ES44	281.2	335	-58	-		15		15.7	NO	No	No	6/ 9	255
24.5x15.00	(x) Fixed wheel	Construction Machinery	11	B19ES44	281.2	335	-58	-		15		15.7	NO	No	No	6/ 9	255
24.5x15.00	(x) Fixed wheel	Construction Machinery	11	B19ES44	281.2	335	-58	-		15		15.7	NO valve only	No	No	6/ 9	255

Wheel Size	Type of wheel	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Size	Type of wheel	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)		(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	18	M16	281	330	-50	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-48	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-48	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	M18	152.6	203.2	-80	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	18	M16	281	330	-50	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Construction Machinery	10	A3 = B22ES36	281	335	50	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES incl.valve	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-75	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-70	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	25	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	25	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	37	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	37	-		15	TH2	15.7	YES	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO valve only	No	No	6	192
26.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG20.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	6	192
26.5xAG20.00 TH2	Disc	Agricultural Machinery	10	A3 = B22ES36	281	335	-			15	TH2	-	NO	No	-	25	700
26.5xAG20.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15	TH2	15.7	NO	No	No	6	192
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	281	335	-75	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-48	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	222	285.75	-50.8	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	222	285.75	-50.8	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES incl.valve	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50			15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	YES incl.valve	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-30	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-75	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-15	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-30	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	Yes	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	Yes	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	Yes	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	Yes	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	3/ 6	144
26.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES	No	No	3/ 6	144
26.5xAG16.00	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	6/9	240

Wheel Sizewhe	Type of el	Applications	Bolt Hole	Bolt Hole Type	Center Hole	P.C.D	Offset Inset	Offset twin wheels	Tire sizes	Tyre angle	Hump	Valve Hole	Valve protection	Flange Reinforced	Knirling	Wheel qty per pallet	Wheels in 40HQ Container
Wheel Sizewhe	Type of el	Applications	NO.	(EUWA)	(mm)	(mm)	(mm)	Offset twin wheels	Tire sizes	degrees (°)	Hump	(mm)	option Code "600"	Flange Reinforced	Knirling	(pieces)	(pieces)
30.5xAG28.00 H2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-90	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220	285.75	-90	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	-90	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	0			15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 H2	(x) Fixed wheel	Agricultural Machinery	10	M20	281	335	-50	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	222	285.75	-63.5	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	222	285.75	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	221.3	285.75	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	0	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	B3 = B22DS36	281	335	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-90	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0			15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	25	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	6	126
30.5xAG28.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	6	126
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	281	335	38	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	221	285.75	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M22	220	285.75	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	222	285.75	49.3	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220.5	285.75	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	220.5	285.75	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	222	285.75	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	M18	280.7	335	-46	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES incl.valve	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	176	225	-90	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES incl.valve	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	0	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-50	-		15	TH2	15.7	YES	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-100	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-50	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A3 = B22ES36	221	275	-100	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	25	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	10	A3 = B22ES36	281	335	-25	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES incl.valve	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	YES incl.valve	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-95	-		15	TH2	15.7	NO	No	No	8	168
30.5xAG20.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-95	-		15	TH2	15.7	YES	No	No	8	168
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	0	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-50	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG24.00 TH2	(x) Fixed wheel	Agricultural Machinery	8	A2 = B18ES32	221	275	-100	-		15	TH2	15.7	NO	No	No	8	126
30.5xAG20.00 TH2	Blank Rim	Agricultural Machinery	-	-	-	-	-	-		15		15.7	NO	No	No	8	168
30.5xAG20.00 TH2	Disc	Agricultural Machinery	10	M22	221	285.75	-			15	TH2	-	NO	No	-	18	432

Not all items are listed in this catalog. Please contact us for any application you do not see in this catalog.

Inquiry Now

If you have any questions or needs about the product, please fill in the following form and we will contact you as soon as possible.
